Multiple linear regression is conceptually very similar to ANCOVA. Let’s use the keeley fire severity plant richness data to see it in action.
keeley <- read.csv("./data/Keeley_rawdata_select4.csv")
head(keeley) distance elev abiotic age hetero firesev cover rich
1 53.40900 1225 60.67103 40 0.757065 3.50 1.0387974 51
2 37.03745 60 40.94291 25 0.491340 4.05 0.4775924 31
3 53.69565 200 50.98805 15 0.844485 2.60 0.9489357 71
4 53.69565 200 61.15633 15 0.690847 2.90 1.1949002 64
5 51.95985 970 46.66807 23 0.545628 4.30 1.2981890 68
6 51.95985 970 39.82357 24 0.652895 4.00 1.1734866 34For our purposes, we’ll focus on fire severity and plant cover as predictors.
I’m not going to lie, visualizing multiple continuous variables is as much of an art as a science. One can use colors and sizes of points, or slice up the data into chunks and facet that. Here are a few examples.
library(ggplot2)

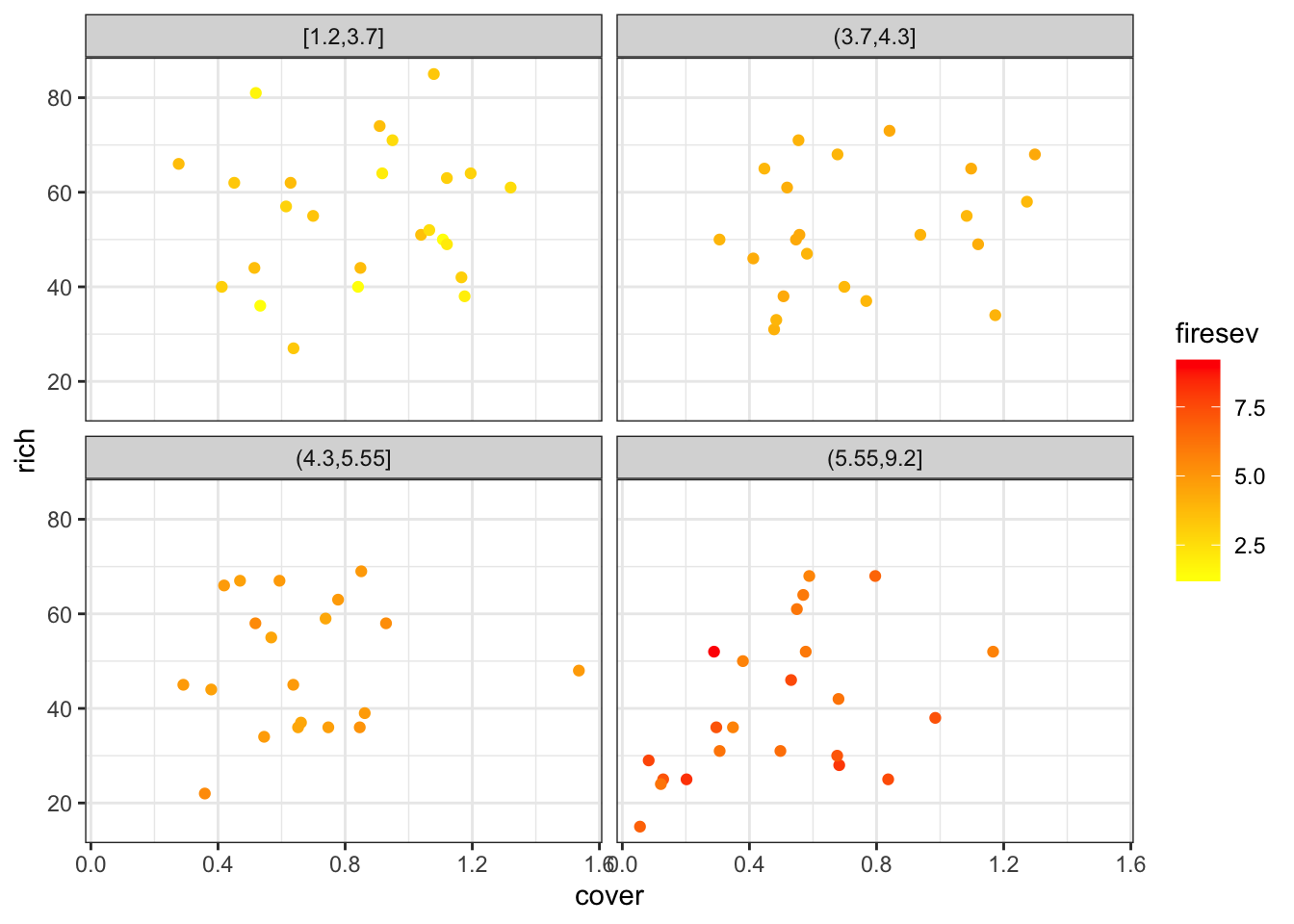

ggplot(data = keeley,
aes(x = cover, y = rich, color=firesev)) +
geom_point() +
scale_color_gradient(low="yellow", high="red") +
theme_bw() +
facet_wrap(vars(cut_number(firesev, 4)))
We can also look at everything!

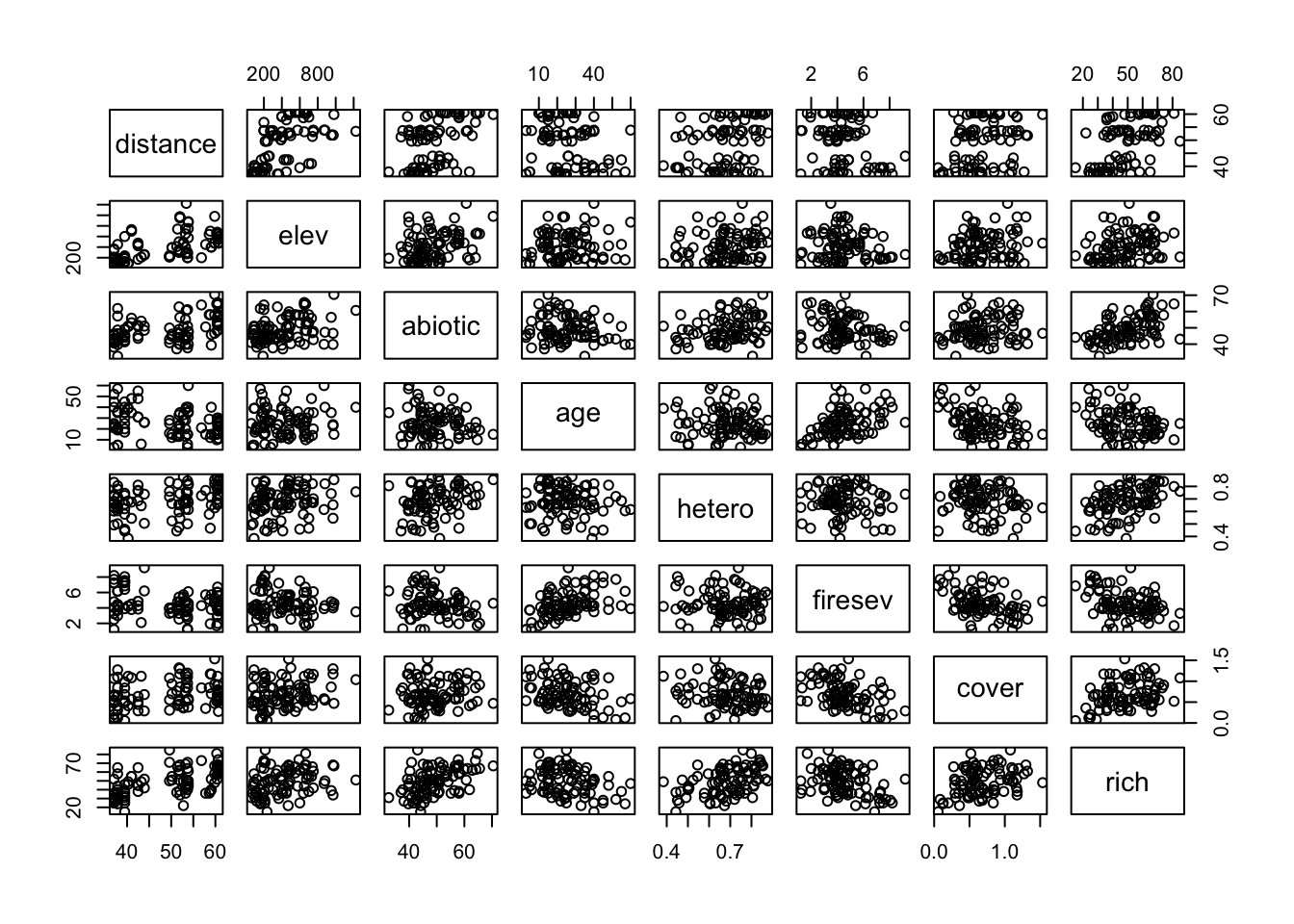

pairs(keeley)
What other plots can you make?
Fitting is straightforward for an additive MLR model. It’s just a linear model!
keeley_mlr <- lm(rich ~ firesev + cover, data=keeley)As for assumptions, we have the usual

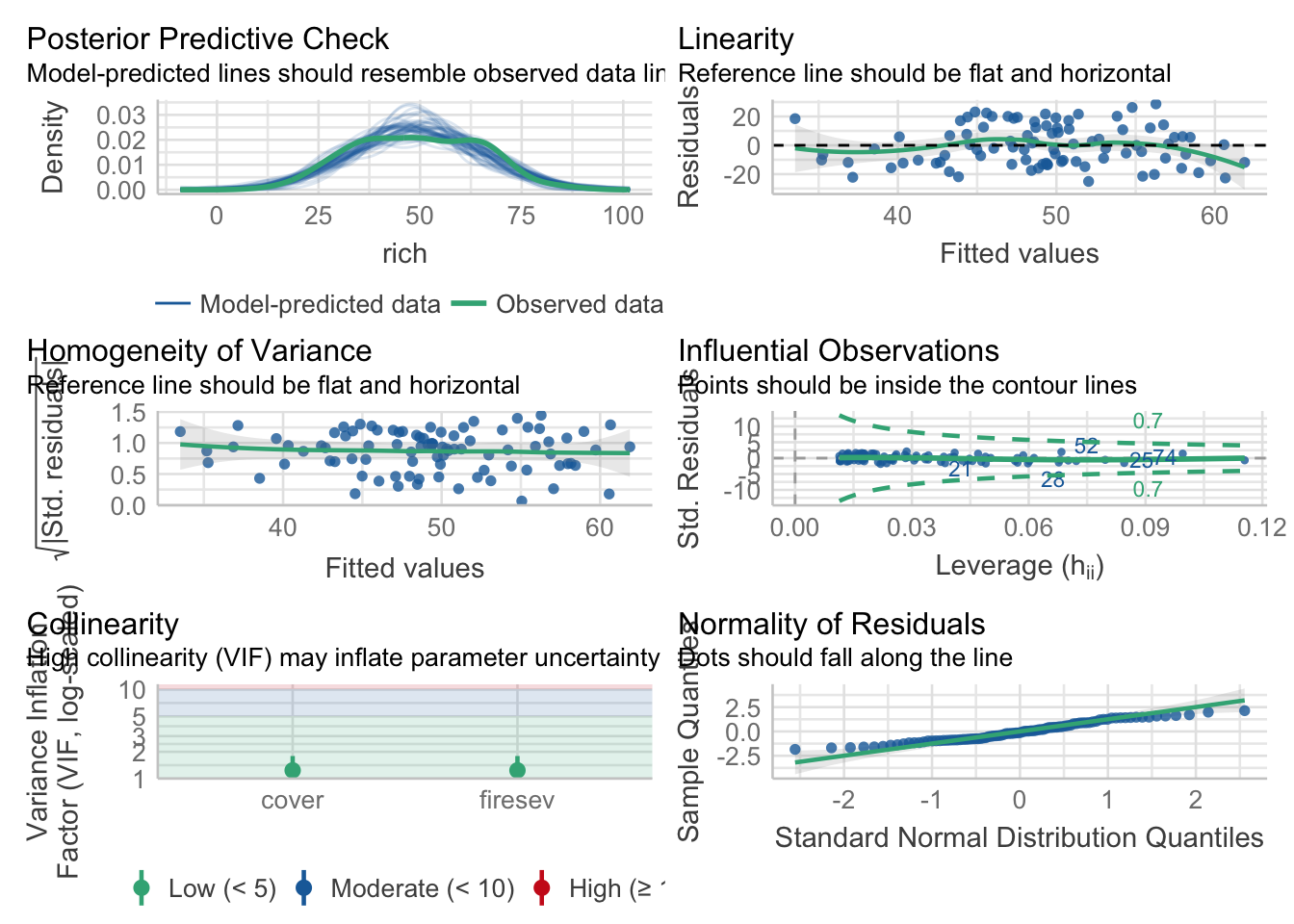

library(performance)
check_model(keeley_mlr)
But now we also need to think about how the residuals relate to each predictor. Fortunately, there’s still residualPlots() in car.

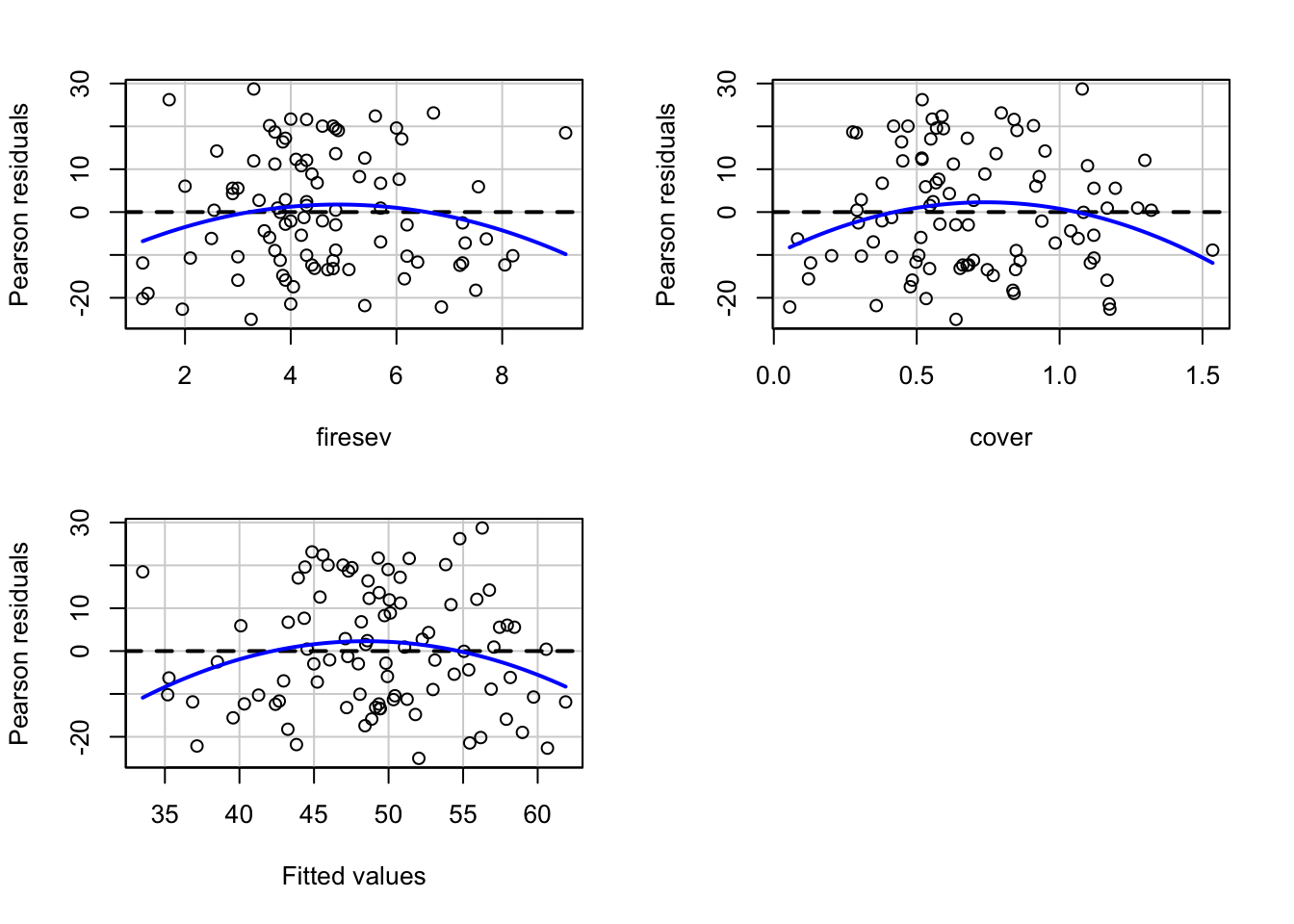

library(car)Loading required package: carDataresidualPlots(keeley_mlr, test=FALSE)
Odd bow shape - but not too bad. Maybe there’s an interaction? Maybe we want to log transform something? Who knows!
We also want to look at multicollinearity. There are two steps for that. First, the vif
check_collinearity(keeley_mlr) |> plot()
Not bad. We might also want to look at the correlation matrix. dplyr can help us here as we want to select down to just relevant columns.
library(dplyr)
keeley |>
dplyr::select(firesev, cover) |>
cor() firesev cover
firesev 1.0000000 -0.4371346
cover -0.4371346 1.0000000Also, not too bad! Well within our range of tolerances.
What about those coefficients?
library(broom)
tidy(keeley_mlr)# A tibble: 3 × 5
term estimate std.error statistic p.value
<chr> <dbl> <dbl> <dbl> <dbl>
1 (Intercept) 53.9 7.04 7.66 2.45e-11
2 firesev -2.53 0.993 -2.55 1.25e- 2
3 cover 9.91 5.17 1.92 5.85e- 2And then the R2
r2(keeley_mlr)# R2 for Linear Regression
R2: 0.170
adj. R2: 0.151Not amazing fit, but, the coefficients are clearly different from 0.
This is where things get sticky. We have two main approaches. First, visualizing with component + residual plots

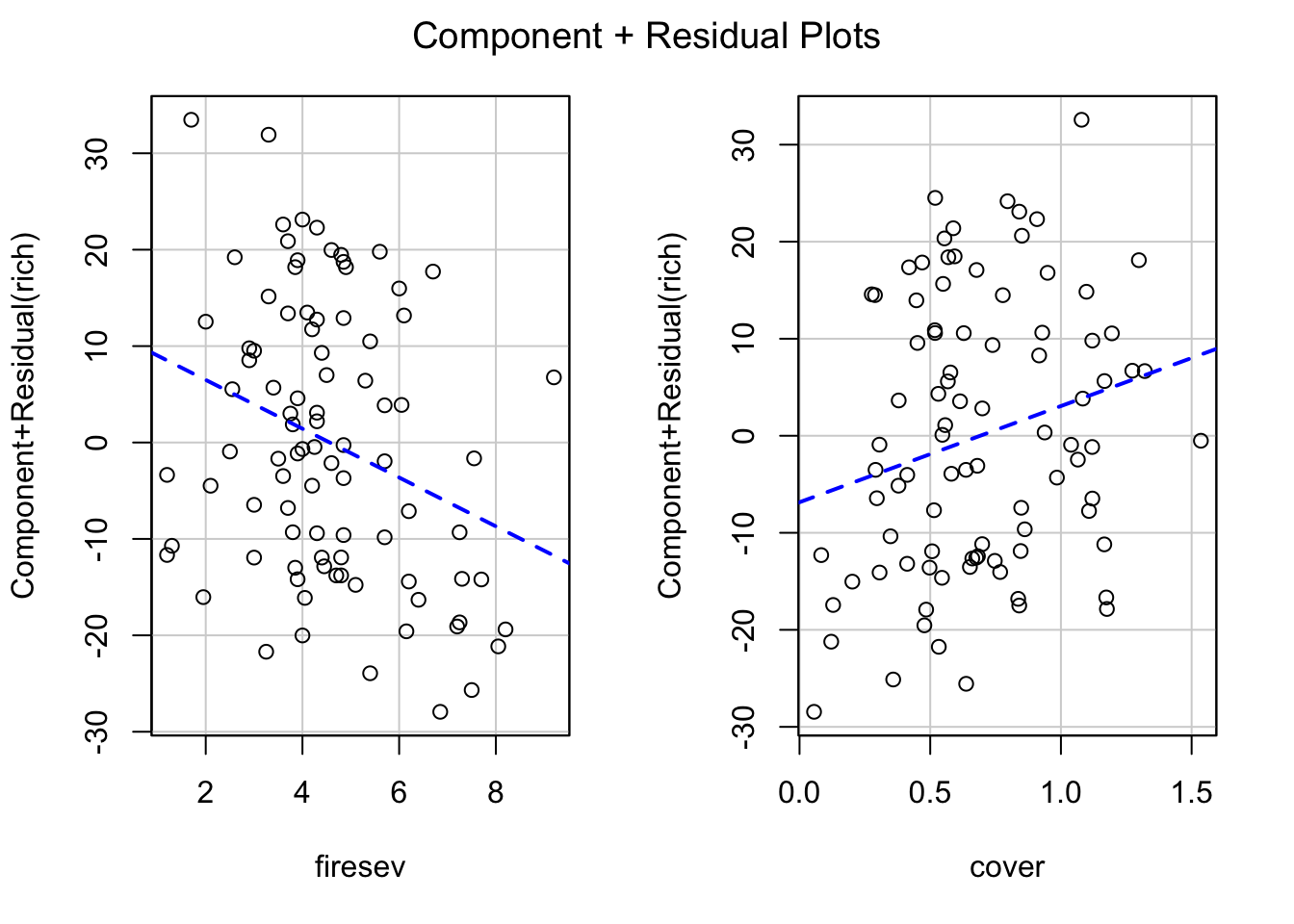

crPlots(keeley_mlr, smooth=FALSE)
But the values on the y axis are….odd. We get a sense of what’s going on and the scatter after accounting for our predictor of interest, but we might want to look at, say, evaluation of a variable at the mean of the other.

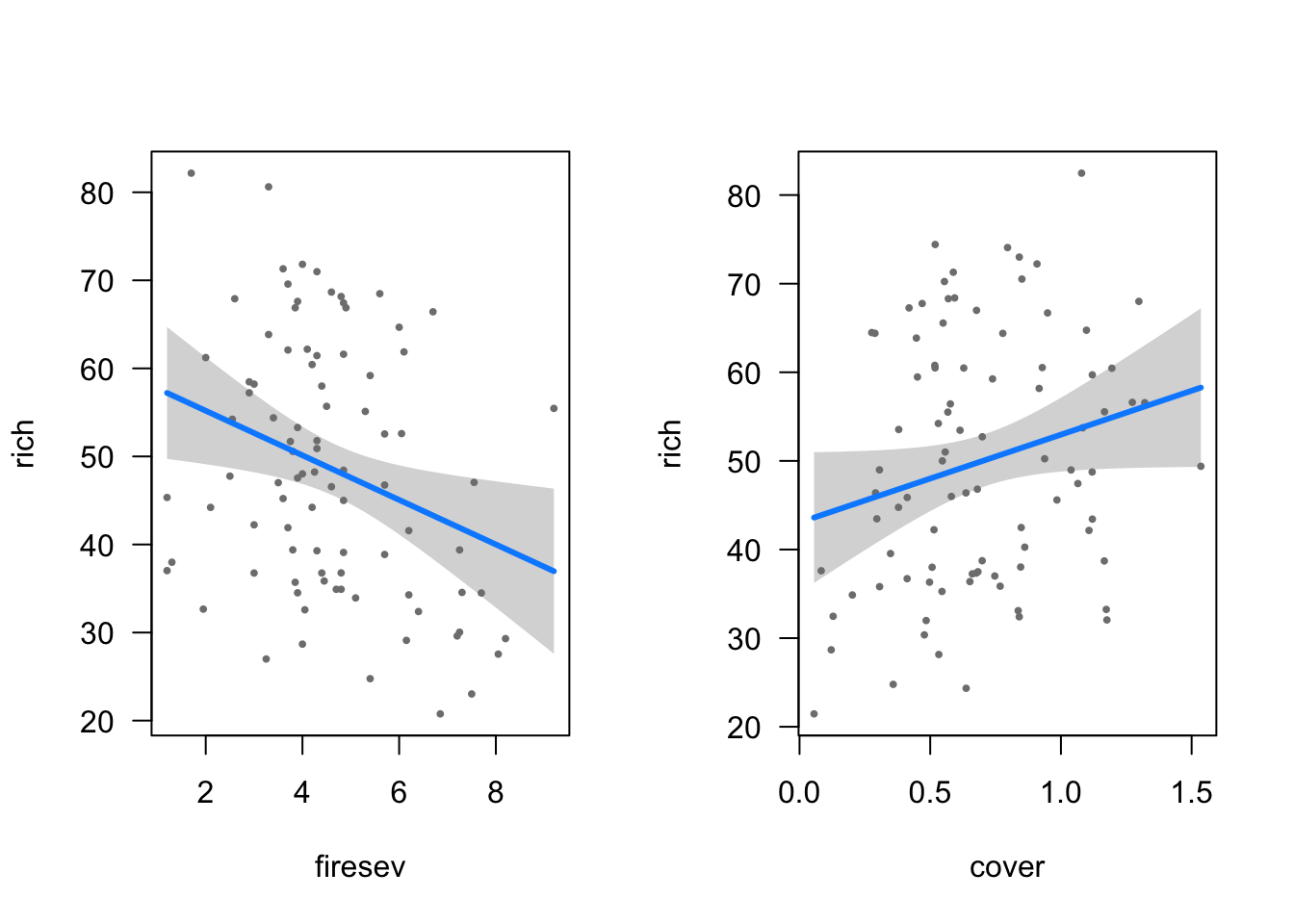

For that, we have visreg
library(visreg)
par(mfrow=c(1,2))
visreg(keeley_mlr)
par(mfrow=c(1,1))Now the axes make far more sense, and we have a sense of the relationship.

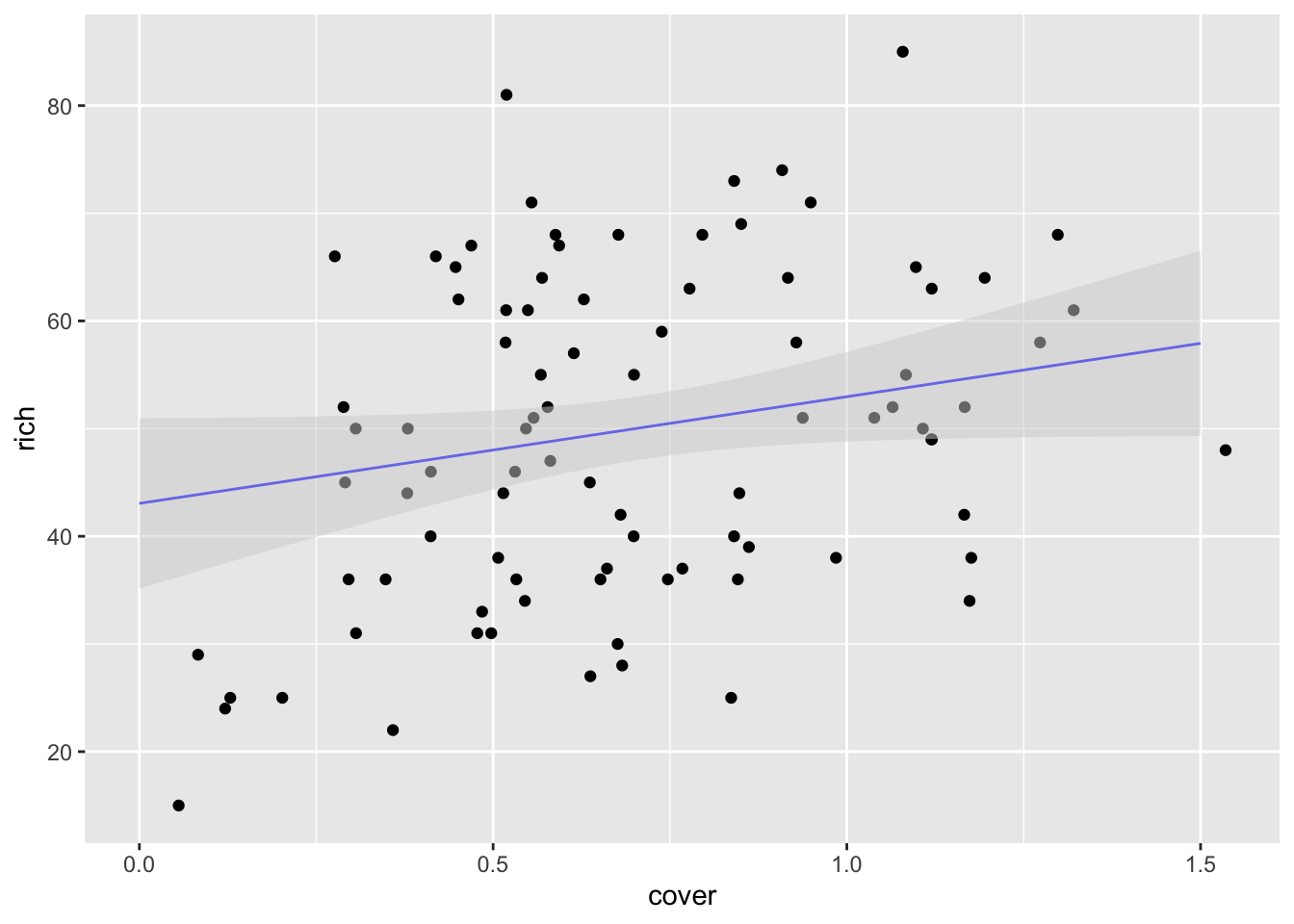

We can actually whip this up on our own using crossing, the median of each value, and predict.
k_med_firesev <- data.frame(firesev = median(keeley$firesev),
cover = seq(0,1.5, length.out = 100))
k_med_firesev <- augment(keeley_mlr, newdata = k_med_firesev,
interval = "confidence")
ggplot() +
geom_point(data=keeley,
mapping = aes(x=cover, y = rich)) +
geom_line(data = k_med_firesev,
mapping=aes(x=cover, y=.fitted),
color="blue") +
geom_ribbon(data = k_med_firesev, mapping = aes(x=cover,
ymin = .lower,
ymax = .upper),
fill="lightgrey", alpha=0.5)
Or, we can use modelr to explore the model and combine that exploration with the data. Let’s get the curve for cover at four levels of fire severity. We’ll use both modelr::data_grid and modelr::add_predictions for a nice easy workflow.
library(modelr)
k_firesev_explore <- data_grid(keeley,
cover = seq_range(cover, 100),
firesev = seq_range(firesev, 4)) %>%
add_predictions(model = keeley_mlr, var = "rich")Nice, no? Sadly, add_predictions doesn’t give us variance (but see my code in https://github.com/tidyverse/modelr/issues/38 for a possible solution if you want it). If you want those, you’ll have to go back to using augment, although you can still use it with data_grid. Actually, let’s try that.
k_firesev_explore <- data_grid(keeley,
cover = seq_range(cover, 100),
firesev = seq_range(firesev, 4)) |>
augment(keeley_mlr, newdata = _, interval = "confidence") |>
rename(rich = .fitted)Huh. Not bad.

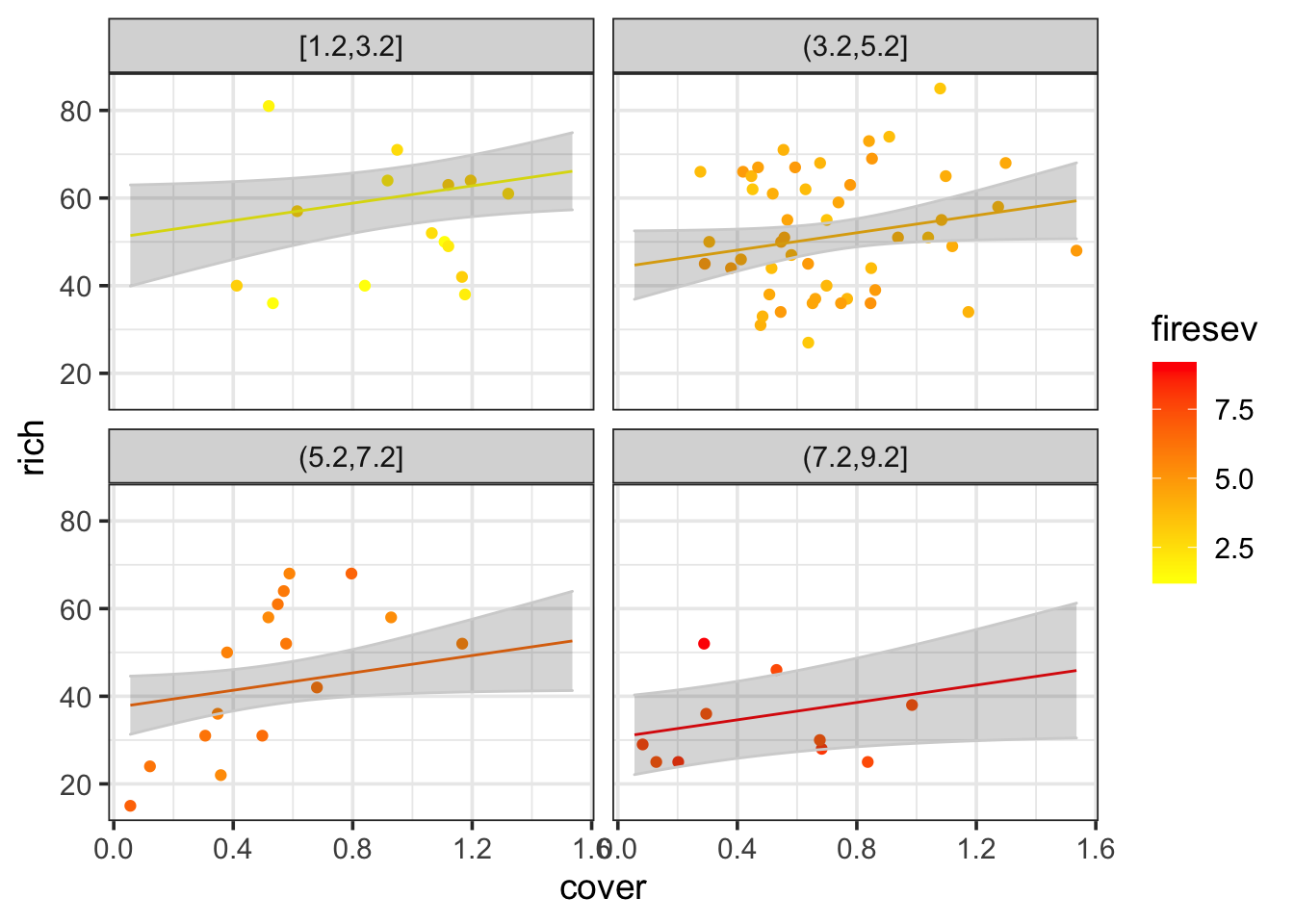

Anywho, then we can visualize with the data!
ggplot(data=keeley,
mapping = aes(x=cover, y = rich, color = firesev)) +
geom_point() +
geom_line(data = k_firesev_explore, aes(group = firesev)) +
geom_ribbon(data = k_firesev_explore,
aes(group = firesev, ymin = .lower, ymax = .upper),
color = "lightgrey", alpha = 0.2) +
scale_color_gradient(low="yellow", high="red") +
facet_wrap(vars(cut_interval(firesev, 4))) +
theme_bw(base_size = 14)
OK, here are two datasets to work with:
planktonSummary.csv showing plankton from Lake Biakal (thanks, Stephanie Hampton). Evluate how Chlorophyll (CHLFa) is affected by other predictors.SwaddleWestNile2002NCEAS_shortnames.csv is about the prevalence of West Nile virus in Birds around Sacramento county in California. What predicts human WNV?Using the following workflow, analyze these data sets.
# Load the data
# Perform a preliminary visualization. Play with this and choose two predictors
# Fit a MLR model
# Test Asssumptions and modify model if needed
# Evaluate results
# Visualize resultsWe’ll work with the zooplankton depredation dataset for two-way linear model with categorical predictors. This is a blocked experiment, so, each treatment is in each block just once.
zooplankton <- read.csv("./data/18e2ZooplanktonDepredation.csv")
ggplot(data = zooplankton,
aes(x = treatment, y = zooplankton)) +
geom_boxplot()

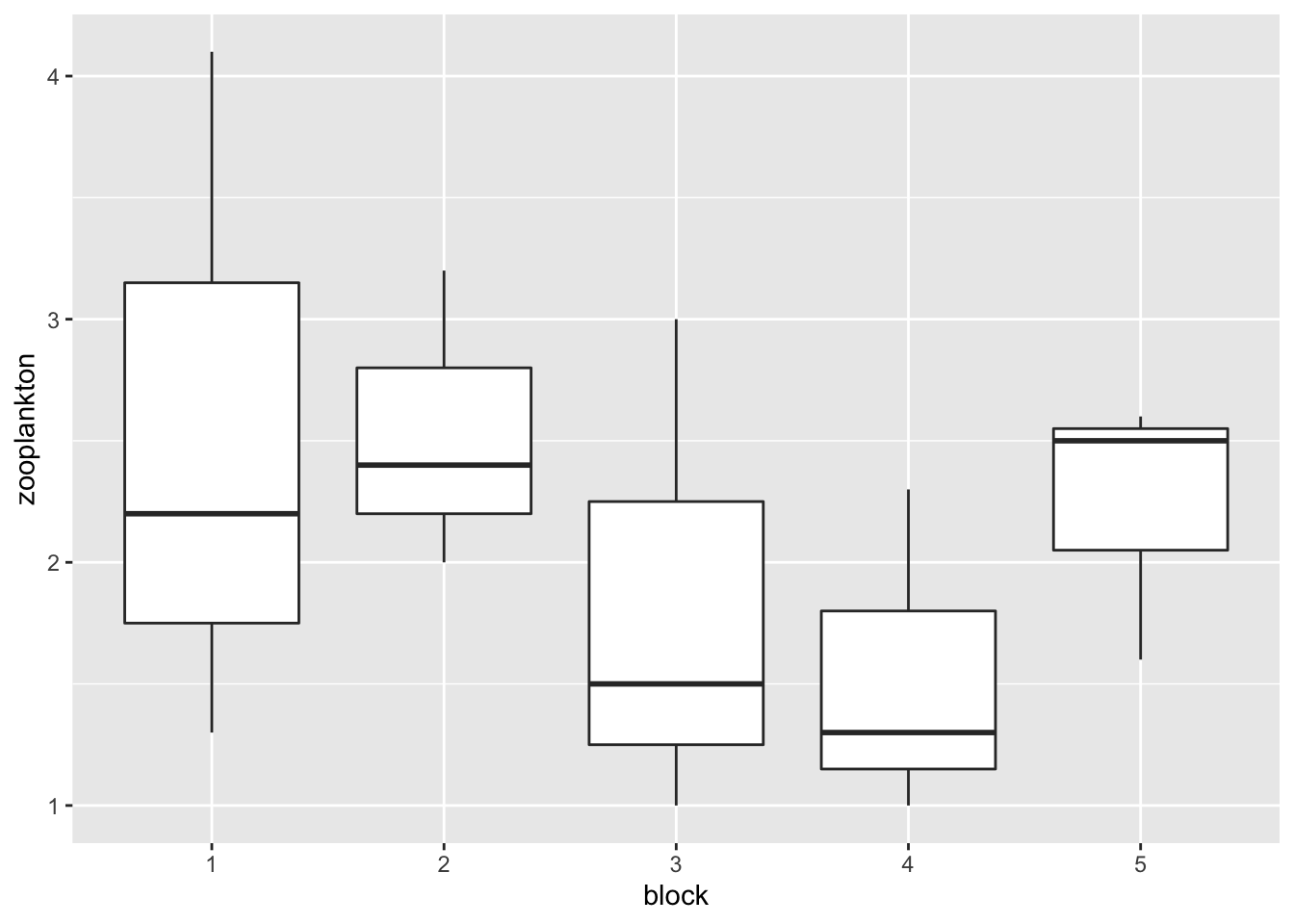

ggplot(data = zooplankton,
aes(x = block, y = zooplankton)) +
geom_boxplot()Warning: Continuous x aesthetic -- did you forget aes(group=...)?
Oh. That’s odd. What is up with block? AH HA! It’s continuous. We need to make it discrete to work with it.
zooplankton <- zooplankton |>
mutate(block = as.character(block))
ggplot(data = zooplankton,
aes(x = block, y = zooplankton)) +
geom_boxplot()
There we go. Always check!
Fit is quite easy. We just add one more factor to an lm model!
zooplankton_lm <- lm(zooplankton ~ treatment + block,
data = zooplankton)We then evaluate residuals almost as usual…

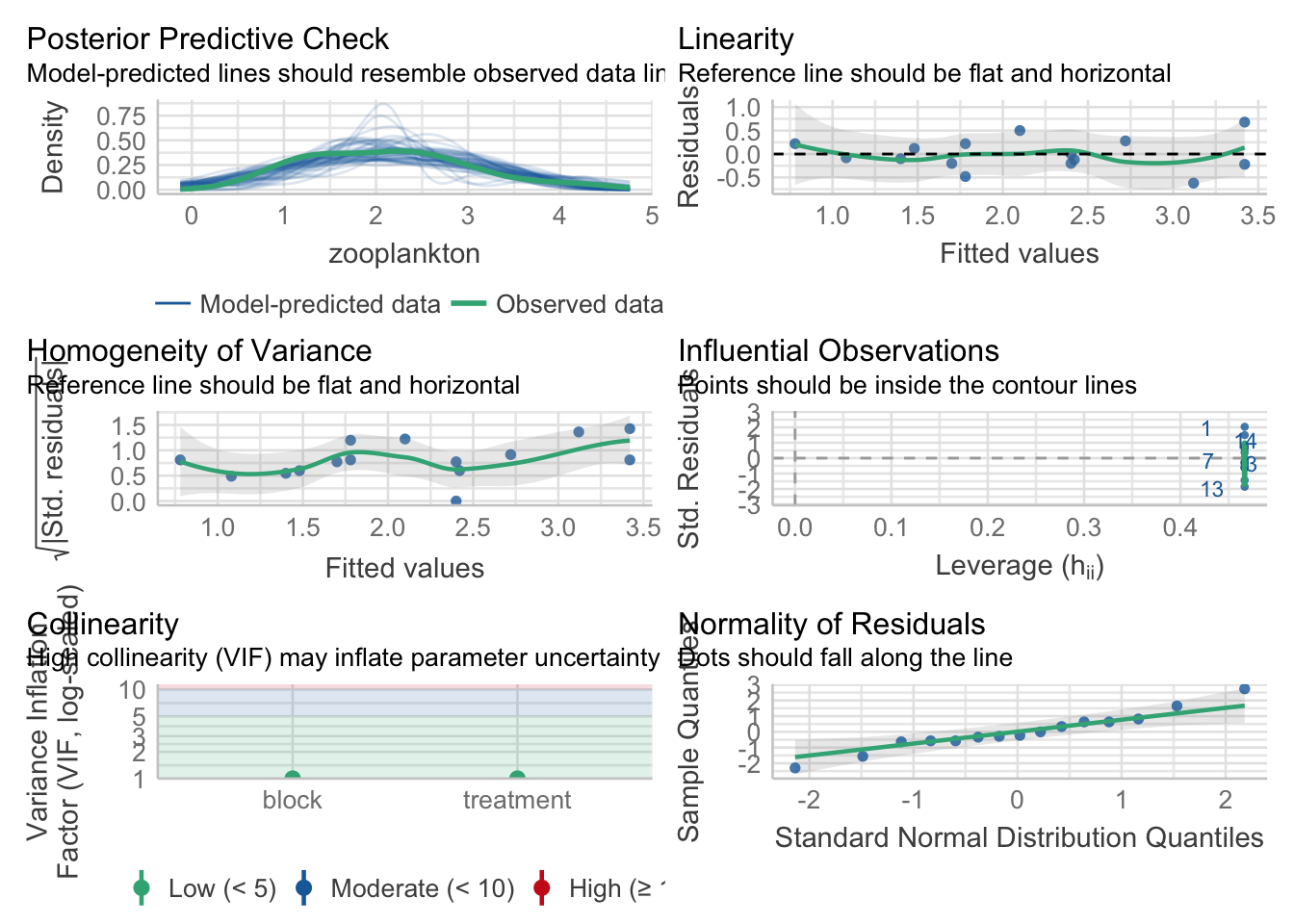

library(performance)
check_model(zooplankton_lm)

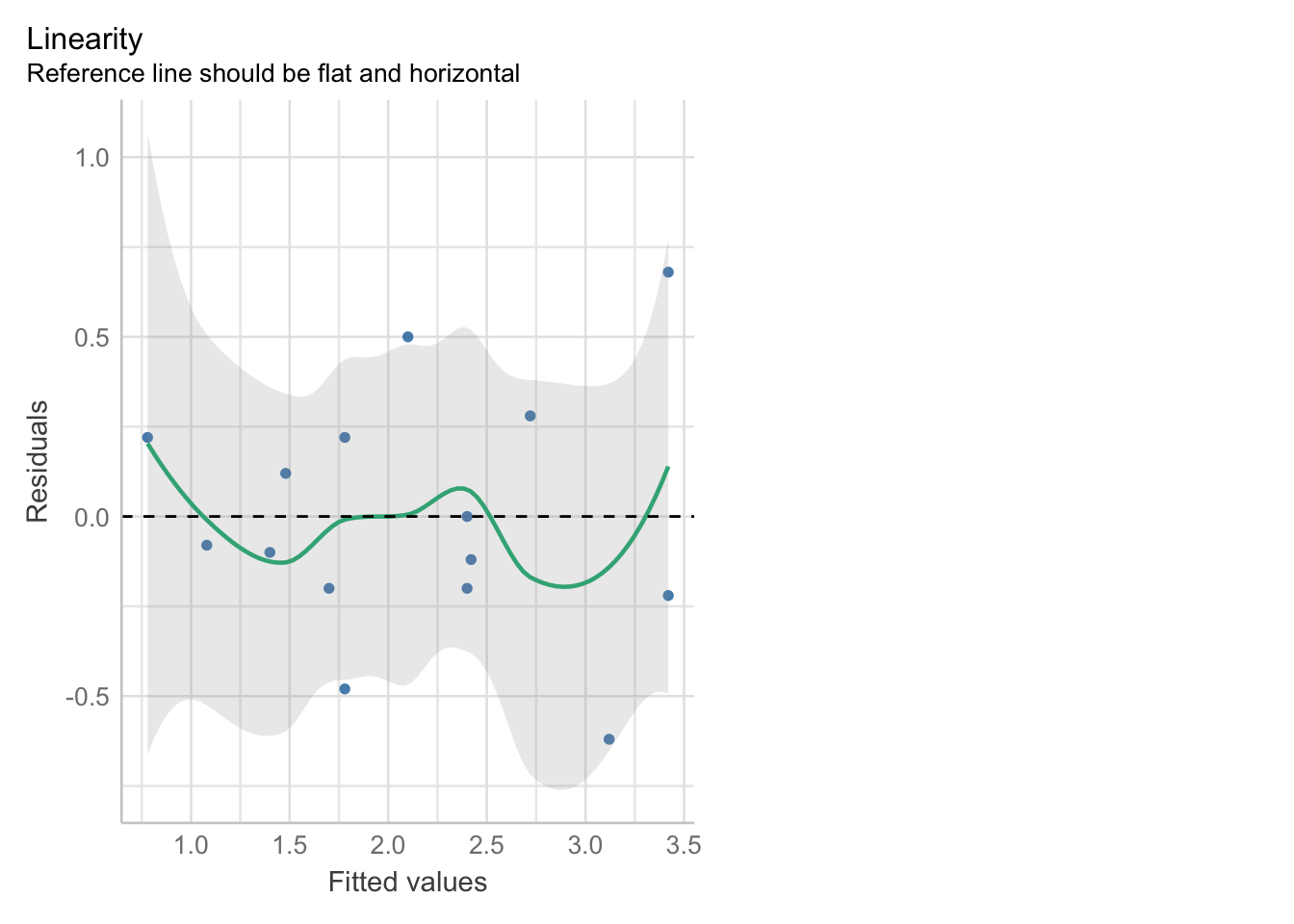

We want to look more deeply by fitted versus residuals to inspect for nonadditivity. Let’s check it out.
check_model(zooplankton_lm, check = "linearity") |> plot()
Looks good!
Let’s look at the coefs!
tidy(zooplankton_lm)# A tibble: 7 × 5
term estimate std.error statistic p.value
<chr> <dbl> <dbl> <dbl> <dbl>
1 (Intercept) 3.42e+ 0 0.313 1.09e+ 1 0.00000433
2 treatmenthigh -1.64e+ 0 0.289 -5.67e+ 0 0.000473
3 treatmentlow -1.02e+ 0 0.289 -3.52e+ 0 0.00781
4 block2 1.04e-15 0.374 2.78e-15 1.00
5 block3 -7.00e- 1 0.374 -1.87e+ 0 0.0979
6 block4 -1.00e+ 0 0.374 -2.68e+ 0 0.0281
7 block5 -3.00e- 1 0.374 -8.03e- 1 0.445 This is still a little odd, though, as our treatments are evaluated in block 1 control. To truly get just the treatment effect, we need to look at the estimated marginal means - the emmeans! The big thing about emmeans is that it creates a reference grid based on the blocks. It then calculates the treatment effect averaged over all blocks, rather than just in block 1.
library(emmeans)
zoop_em <- emmeans(zooplankton_lm, ~treatment)
zoop_em treatment emmean SE df lower.CL upper.CL
control 3.02 0.205 8 2.548 3.49
high 1.38 0.205 8 0.908 1.85
low 2.00 0.205 8 1.528 2.47
Results are averaged over the levels of: block
Confidence level used: 0.95 Here, emmeans gets interesting.
contrast(zoop_em, method = "pairwise") |>
confint() contrast estimate SE df lower.CL upper.CL
control - high 1.64 0.289 8 0.813 2.467
control - low 1.02 0.289 8 0.193 1.847
high - low -0.62 0.289 8 -1.447 0.207
Results are averaged over the levels of: block
Confidence level used: 0.95
Conf-level adjustment: tukey method for comparing a family of 3 estimates Note the message that we’ve averaged over the levels of block. You can do any sort of posthoc evaluation (query your model!) as you wanted before. And, you could have done the same workflow for block as well.
Given then similarity with models from last week, let’s just jump right into two examples, noting a key difference or two here and there.
To start with, let’s look at gene expression by different types of bees.
bees <- read.csv("./data/18q07BeeGeneExpression.csv")
#Visualize
________(data=____,
aes(x = type, y = Expression)) +
_________()
#fit
bee_lm <- __(______ ~ ______ + _____, data=________)
#assumptions
________(______)
#pairwise comparison
emmeans(__________, spec = ~ ________) |>
contrast(method = "pairwise") |>
confint()Wow, not that different, save adding one more term and the residualPlots.
OK, one more…. repeating an experiment in the intertidal?
intertidal <- read.csv("./data/18e3IntertidalAlgae.csv")
#Visualize
ggplot(data = _____________,
_____ = ______(x = herbivores, y = sqrtarea)) +
_____________()
#fit
intertidal_lm <- __(______ ~ ______ + _____, data=________)
#assumptions
________(______)
#pairwise comparison
emmeans(__________, spec = ~ ________) |>
contrast(method = "___________") |>
________()Did that last one pass the test of non-additivity?
Combining categorical and continuous variables is not that different from what we have done above. To start with, let’s look at the neanderthal data from class.
neand <- read.csv("./data/18q09NeanderthalBrainSize.csv")
head(neand) lnmass lnbrain species
1 4.00 7.19 recent
2 3.96 7.23 recent
3 3.95 7.26 recent
4 4.04 7.23 recent
5 4.11 7.22 recent
6 4.10 7.24 recentWe can clearly see both the categorical variable we’re interested in, and the covariate.
To get a preliminary sense of what’s going on here, do some exploratory visualization with ggplot2 why doncha!

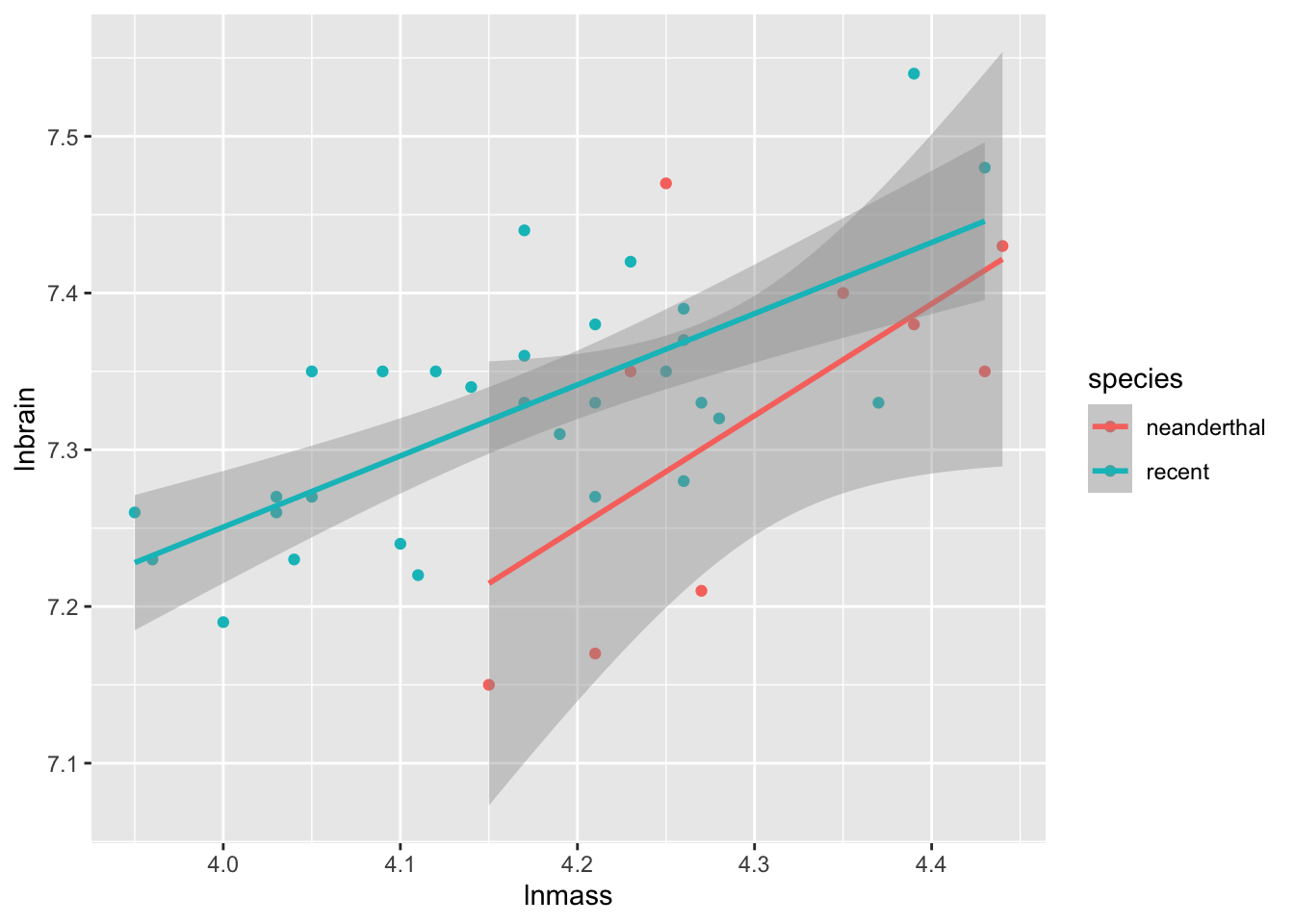

library(ggplot2)
qplot(lnmass, lnbrain, color=species, data=neand) +
stat_smooth(method="lm")
Now, the CIs are going to be off as this wasn’t all tested in the same model, but you begin to get a sense of whether things are parallel or not, and whether this covariate is important.
What other plots might you produce?
As this is a general linear model, good olde lm() is still there for us.
neand_lm <- lm(lnbrain ~ species + lnmass, data=neand)In addition to the ususal tests, we need to make sure that the slopes really are parallel. We do that by fitting a model with an interaction and testing it (which, well, if there was and interaction, might that be interesting).

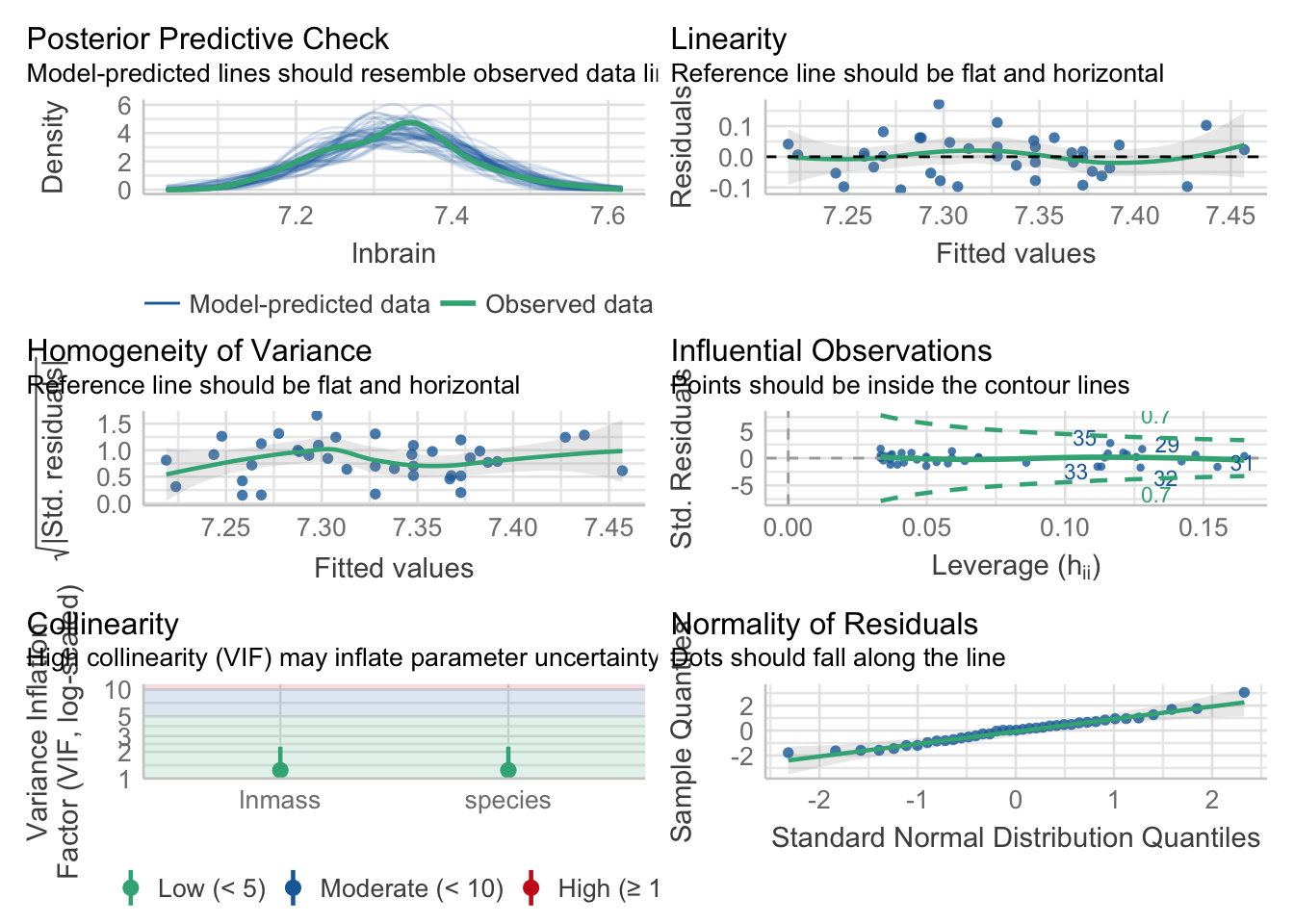

First, the usual
check_model(neand_lm)
#And now look at residuals by group/predictors
library(car)
residualPlots(neand_lm, tests=FALSE)
To test the parallel presumption
neand_int <- lm(lnbrain ~ species*lnmass, data=neand)
tidy(neand_int)# A tibble: 4 × 5
term estimate std.error statistic p.value
<chr> <dbl> <dbl> <dbl> <dbl>
1 (Intercept) 4.25 0.977 4.35 0.000111
2 speciesrecent 1.18 1.06 1.11 0.274
3 lnmass 0.714 0.227 3.14 0.00340
4 speciesrecent:lnmass -0.259 0.248 -1.05 0.303 We can see that there is no interaction, and hence we are a-ok to proceed with the parallel lines model.
First, let’s look at our coefficients
tidy(neand_lm)# A tibble: 3 × 5
term estimate std.error statistic p.value
<chr> <dbl> <dbl> <dbl> <dbl>
1 (Intercept) 5.19 0.395 13.1 2.74e-15
2 speciesrecent 0.0703 0.0282 2.49 1.75e- 2
3 lnmass 0.496 0.0917 5.41 4.26e- 6Everything looks like it matters. If you had wanted to do this with a centered covariate, how would things differ? Try it out.
Second, does our model explain much?
r2(neand_lm)# R2 for Linear Regression
R2: 0.449
adj. R2: 0.418Not bad - and both types agree fairly well.
Next, we might want to compare covariate adjusted groups and/or look at covariate adjusted means.
library(emmeans)
adj_means <- emmeans(neand_lm, specs = ~species)
#adjusted means
adj_means species emmean SE df lower.CL upper.CL
neanderthal 7.272 0.02419 36 7.223 7.321
recent 7.342 0.01250 36 7.317 7.367
Confidence level used: 0.95 Nice! But, what if we wanted to know what value of the covariate we were using? To get those, we need to use say that we are using lnmass as a reference grid - i.e. we’re marginalizing over it.
avg_sp_means <- emmeans(neand_lm, ~species|lnmass)
avg_sp_meanslnmass = 4.198:
species emmean SE df lower.CL upper.CL
neanderthal 7.272 0.02419 36 7.223 7.321
recent 7.342 0.01250 36 7.317 7.367
Confidence level used: 0.95 We can then use this for pairwise comparisons, etc.
#comparisons
contrast(avg_sp_means, method="pairwise") |>
confint()lnmass = 4.2:
contrast estimate SE df lower.CL upper.CL
neanderthal - recent -0.0703 0.0282 36 -0.128 -0.0131
Confidence level used: 0.95 You can also specify other levels of mass, if you are more interested in those for biological relevance. You can even specify multiple levels, or even a smooth curve and plot the results!
We can also see the estimates of the slopes for each species (which is more useful when there is an interaction - as summary is just fine without.)
#no interaction
emtrends(neand_lm, ~species, var = "lnmass") species lnmass.trend SE df lower.CL upper.CL
neanderthal 0.496 0.0917 36 0.31 0.682
recent 0.496 0.0917 36 0.31 0.682
Confidence level used: 0.95 Visualization is funny, as you want to make parallel lines and also get the CIs right. Rather than rely on ggplot2 to do this natively, we need to futz around a bit with generating predictions
neand_predict <- augment(neand_lm, interval="confidence")
head(neand_predict)# A tibble: 6 × 11
lnbrain species lnmass .fitted .lower .upper .resid .hat .sigma .cooksd
<dbl> <chr> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl>
1 7.19 recent 4 7.24 7.20 7.28 -0.0536 0.0860 0.0669 0.0222
2 7.23 recent 3.96 7.22 7.18 7.27 0.00624 0.114 0.0676 0.000425
3 7.26 recent 3.95 7.22 7.17 7.27 0.0412 0.122 0.0672 0.0202
4 7.23 recent 4.04 7.26 7.23 7.30 -0.0335 0.0637 0.0673 0.00611
5 7.22 recent 4.11 7.30 7.27 7.33 -0.0782 0.0394 0.0662 0.0196
6 7.24 recent 4.1 7.29 7.27 7.32 -0.0532 0.0418 0.0670 0.00968
# … with 1 more variable: .std.resid <dbl>So, here we have fit values, lower confidence interval, and upper confidence intervals. As we have not fed augment() any new data, these values line up with our neand data frame, so can use them immediately.

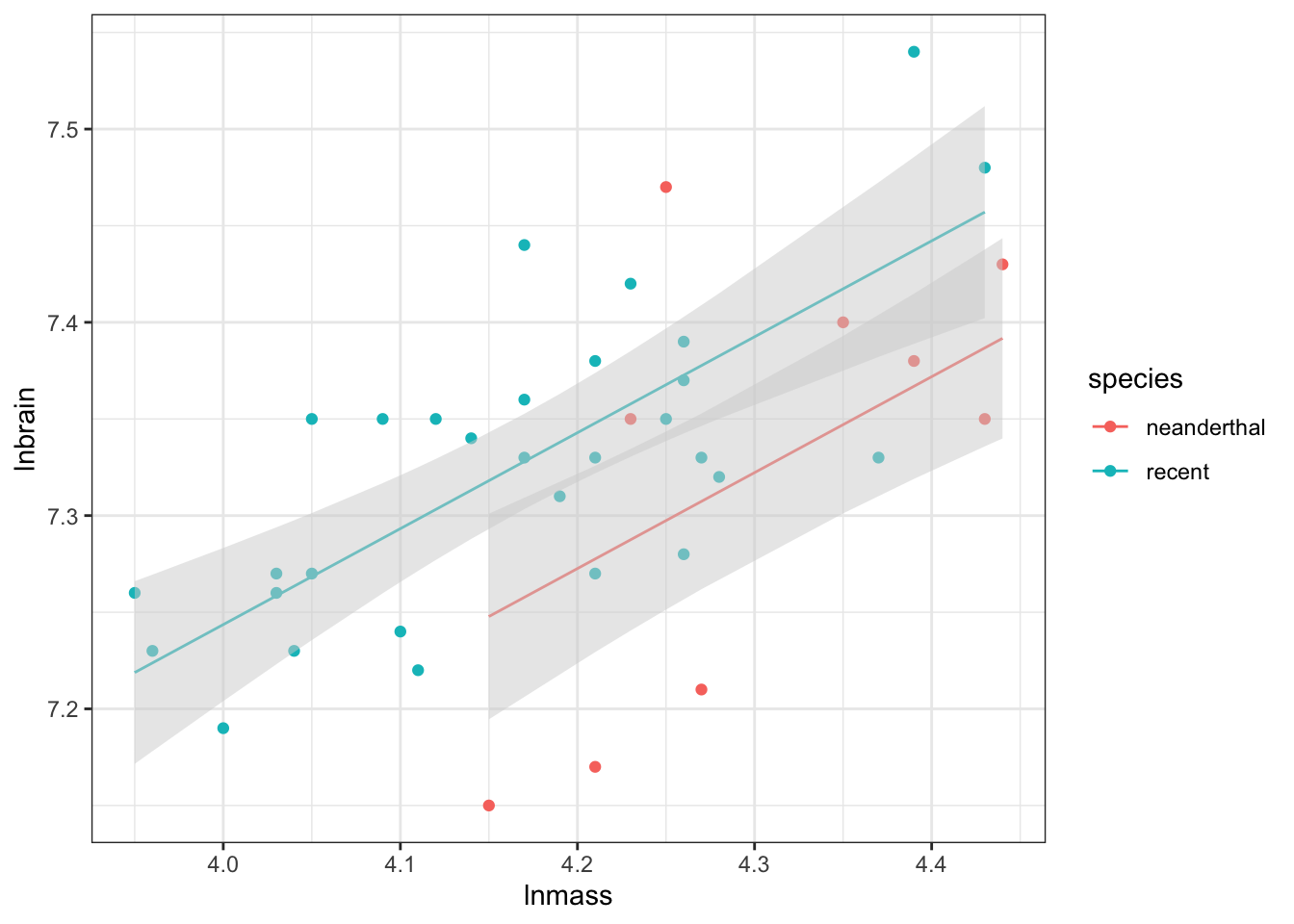

ggplot(data = neand_predict,
aes(x = lnmass, color = species)) +
geom_point(mapping=aes(y=lnbrain)) +
geom_line(mapping = aes(y=.fitted)) +
geom_ribbon(aes(ymin=.lower,
ymax=.upper,
group = species),
fill="lightgrey",
alpha=0.5,
color = NA) +
theme_bw()
And there we have nice parallel lines with model predicted confidence intervals!
I’ve provided two data sets:
1) 18e4MoleRatLayabouts.csv looking at how caste and mass affect the energy mole rates expend
2) 18q11ExploitedLarvalFish.csv looking at how status of a marine area - protected or not - influences the CV around age of maturity of a number of different fish (so, age is a predictor)
Using the following workflow, analyze these data sets.
# Load the data
# Perform a preliminary visualization
# Fit a model
# Test Assumptions and modify model if needed
# Evaluate results
# Post-hocs if you can
# Visualize results
