Maximum Likelihood Estimation and Likelihood Ratio Testing

class: center, middle

# Maximum Likelihood Estimation and Likelihood Ratio Testing<br>

![:scale 55%](images/13/hey_gurl_liklihood.jpeg)

---
class: center, middle

# Etherpad
<br><br>
<center><h3>https://etherpad.wikimedia.org/p/607-mle-2020</h3></center>

---

# Applying Different Styles of Inference

- **Null Hypothesis Testing**: What's the probability that things are not influencing our data?
      - Deductive

- **Model Comparison**: Comparison of alternate hypotheses
      - Deductive or Inductive

- **Cross-Validation**: How good are you at predicting new data?
      - Deductive

- **Probabilistic Inference**: What's our degree of belief in a data?
      - Inductive

---

# Applying Different Styles of Inference

.grey[
- **Null Hypothesis Testing**: What's the probability that things are not influencing our data?
      - Deductive
]

- **Model Comparison**: Comparison of alternate hypotheses
      - Deductive or Inductive

- **Cross-Validation**: How good are you at predicting new data?
      - Deductive

.grey[
- **Probabilistic Inference**: What's our degree of belief in a data?
      - Inductive
]

---
# To Get There, We Need To Understand Likelihood and Deviance

.center[
![](./images/mmi/bjork-on-phone-yes-i-am-all-about-the-deviance-let-us-make-it-shrink-our-parameters.jpg)
]

---
# A Likely Lecture

1. Introduction to Likelihood

2. Maximum Likelihood Estimation

3. Maximum Likelihood and Linear Regression

4. Comparing Hypotheses with Likelihood

---

class: middle

# Likelihood: how well data support a given hypothesis.

### Note: Each and every parameter choice IS a hypothesis

---

# Likelihood Defined
<br><br>
`$$\Large L(H | D) = p(D | H)$$`

Where the D is the data and H is the hypothesis (model) including a both a data generating process with some choice of parameters (often called `$\theta$`). The error generating process is inherent in the choice of probability distribution used for calculation.

---
# Thinking in Terms of Models and Likelihood

- First we have a **Data Generating Process**

- This is our hypothesis about how the world works

     - `$\hat{y}_i = \beta_0 + \beta_1 x_i$`

--

- Then we have a likelihood of the data given this hypothesis
     - This allows us to calculate the likelihood of observing our data given the hypothesis

     - Called the **Likelihood Function**

     - `$y_{i} = N(\hat{y}_i, \sigma)$`

---
# All Kinds of Likelihood functions
- Probability density functions are the most common

- But, hey, `$\sum(y_{i} - \hat{y}_i)^2$` is one as well

- Extremely flexible

- The key is a function that can find a minimum or maximum value, depending on your parameters

---

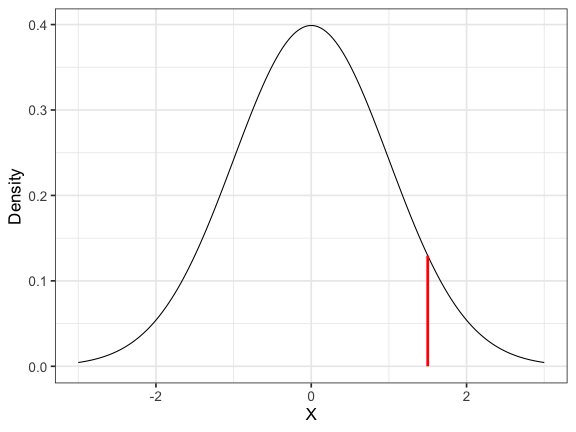

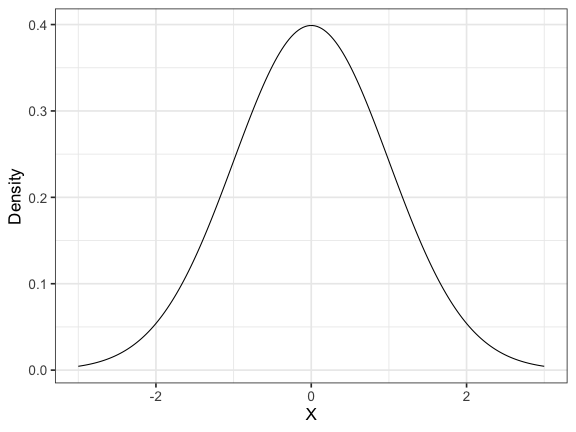

# Likelihood of a Single Value
What is the likelihood of a value of 1.5 given a hypothesized Normal distribution where the mean is 0 and the SD is 1?

---
# Likelihood of a Single Value
What is the likelihood of a value of 1.5 given a hypothesized Normal distribution where the mean is 0 and the SD is 1.

`$$\mathcal{L}(\mu = 0, \sigma = 1 | Data = 1.5) = dnorm(1.5,  \mu = 0, \sigma = 1)$$`

---
# A Likely Lecture

1. Introduction to Likelihood

2. .red[Maximum Likelihood Estimation]

3. Maximum Likelihood and Linear Regression

4. Comparing Hypotheses with Likelihood

---
class: middle

## The Maximum Likelihood Estimate is the value at which `$p(D | \theta)$` - our likelihood function -  is highest.

#### To find it, we search across various values of `$\theta$`

---
# MLE for Multiple Data Points

Let's say this is our data:

```
 [1]  3.37697212  3.30154837  1.90197683  1.86959410  0.20346568  3.72057350
 [7]  3.93912102  2.77062225  4.75913135  3.11736679  2.14687718  3.90925918
[13]  4.19637296  2.62841610  2.87673977  4.80004312  4.70399588 -0.03876461
[19]  0.71102505  3.05830349
```

We know that the data comes from a normal population with a `$\sigma$` of 1.... but we want to get the MLE of the mean.

`$p(D|\theta) = \prod p(D_i|\theta)$`

&nbsp; &nbsp;     = `$\prod dnorm(D_i, \mu, \sigma = 1)$`

---

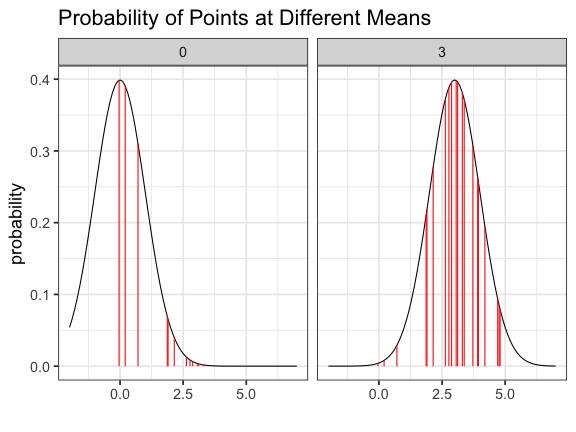

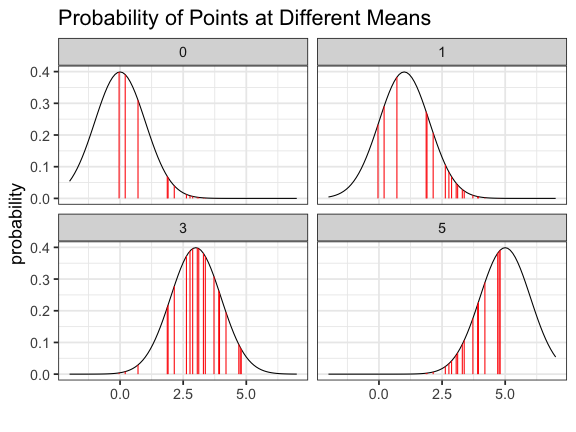

# Likelihood At Different Choices of Mean, Visually

---

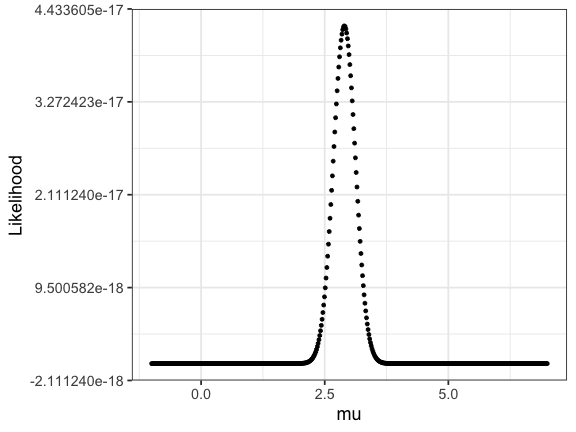

# The Likelihood Surface

MLE = 2.896

---

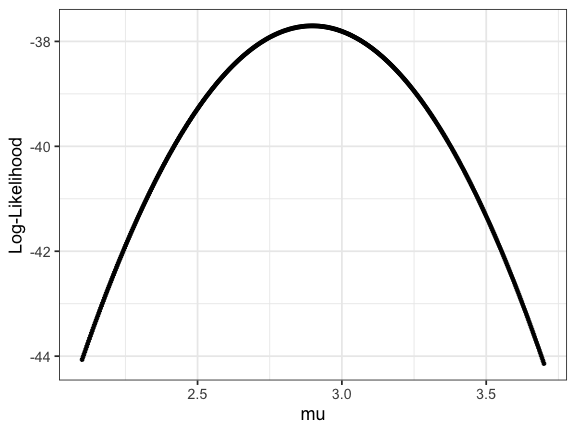

# The Log-Likelihood Surface

We use Log-Likelihood as it is not subject to rounding error, and approximately `$\chi^2$` distributed.

<img src="mle_cv_files/figure-html/loglik_surf-1.png" style="display: block; margin: auto;" />
---

# The `$\chi^2$` Distribution

- Distribution of sums of squares of k data points drawn from N(0,1)

- k = Degrees of Freedom

- Measures goodness of fit

- A large probability density indicates a match between the squared difference of an observation and expectation

---

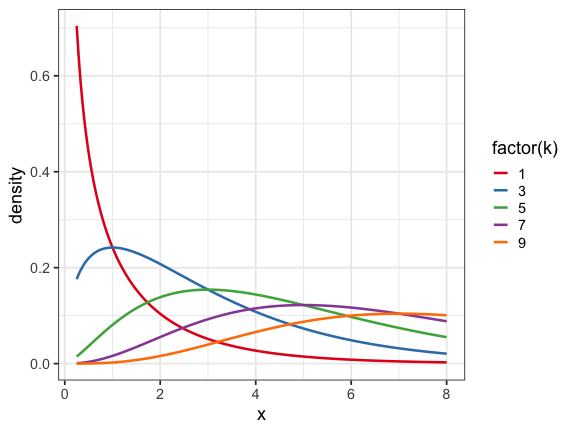

# The `$\chi^2$` Distribution, Visually
<img src="mle_cv_files/figure-html/chisq_dist-1.png" style="display: block; margin: auto;" />

---

# Hey, Look, it's the Standard Error!

The 68% CI of  a `$\chi^2$` distribution is 0.49, so....

---

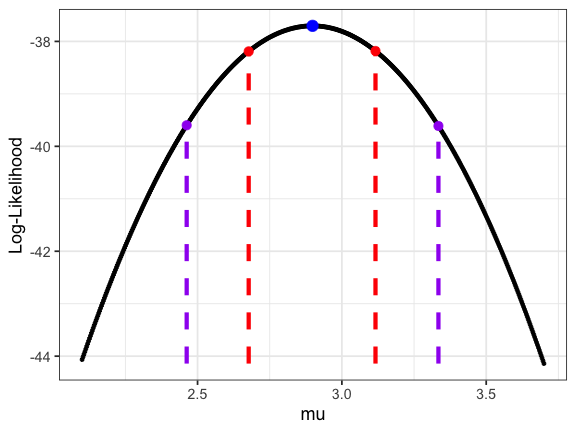

# Hey, Look, it's the 95% CI!

The 95% CI of  a `$\chi^2$` distribution is 1.92, so....

---

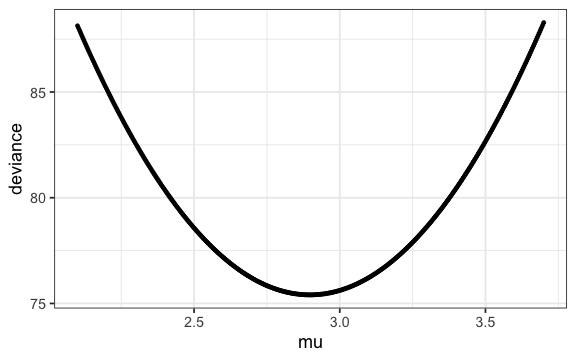

# The Deviance: -2 * Log-Likelihood

- Measure of fit. Smaller deviance = closer to perfect fit
- We are minimizing now, just like minimizing sums of squares
- Point deviance residuals have meaning
- Point deviance of linear regression = mean square error!

---
# A Likely Lecture

1. Introduction to Likelihood

2. Maximum Likelihood Estimation

3. .red[Maximum Likelihood and Linear Regression]

4. Comparing Hypotheses with Likelihood

---
# Putting MLE Into Practice with Pufferfish

.pull-left[
- Pufferfish are toxic/harmful to predators
<br>
- Batesian mimics gain protection from predation - why?
<br><br>
- Evolved response to appearance?
<br><br>
- Researchers tested with mimics varying in toxic pufferfish resemblance
]

.pull-right[
![:scale 80%](./images/11/puffer_mimics.jpg)
]
---

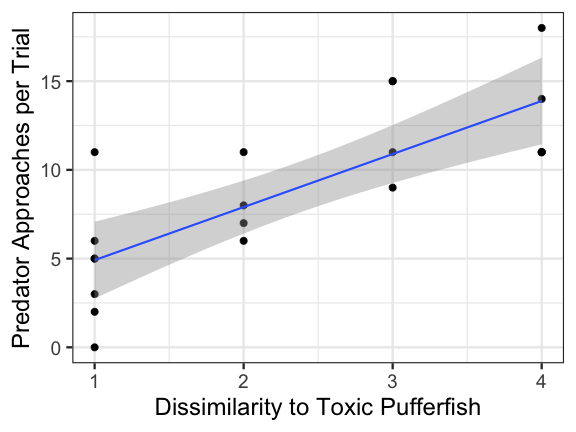

# This is our fit relationship
<img src="mle_cv_files/figure-html/puffershow-1.png" style="display: block; margin: auto;" />

---
# Likelihood Function for Linear Regression
<br><br><br>
<center>Will often see:<br><br>
`$\large L(\theta | D) = \prod_{i=1}^n p(y_i\; | \; x_i;\ \beta_0, \beta_1, \sigma)$` </center>

---
# Likelihood Function for Linear Regression: What it Means
<br><br>
`$$L(\theta | Data) = \prod_{i=1}^n \mathcal{N}(Visits_i\; |\; \beta_{0} + \beta_{1} Resemblance_i, \sigma)$$`
<br><br>
where `$\beta_{0}, \beta_{1}, \sigma$` are elements of `$\theta$`

---

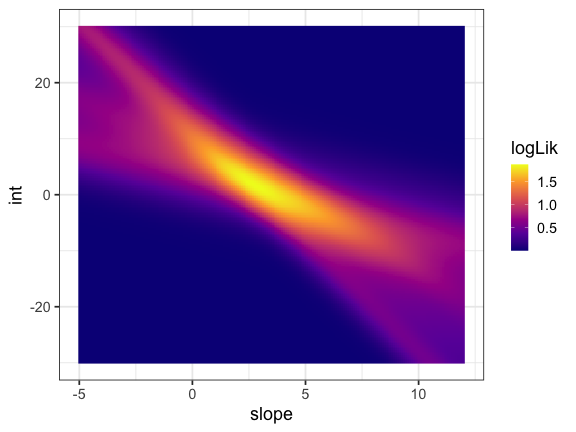

# The Log-Likelihood Surface from Grid Sampling

---
# Searching Likelihood Space: Algorithms

.pull-left[

- Grid sampling tooooo slow

-   Newtown-Raphson (algorithmicly implemented in `nlm` and
    `optim` with the `BFGS` method) uses derivatives
     - good for smooth surfaces & good start values

-   Nelder-Mead Simplex (`optim`’s default)
     - good for rougher surfaces, but slower

-   Maaaaaany more....
]

.pull-right[
![](images/mle/likelihood_boromir.jpg)
]

---
# Quantiative Model of Process Using Likelihood

<br><br>
**Likelihood:**
`$Visits_i \sim \mathcal{N}(\hat{Visits_i}, \sigma)$`
<br><br><br>

**Data Generating Process:**
`$\hat{Visits_i} = \beta_{0}  +  \beta_{1} Resemblance_i$`

---
# Fit Your Model!

```r
puffer_glm <- glm(predators ~ resemblance,
                  data = puffer,
                  family = gaussian(link = "identity"))
```

- GLM stands for **Generalized Linear Model**

- We specify the error distribution and a 1:1 link between our data generating process and the value plugged into the error generating process

- If we had specified "log" would be akin to a log transformation.... sort of
---

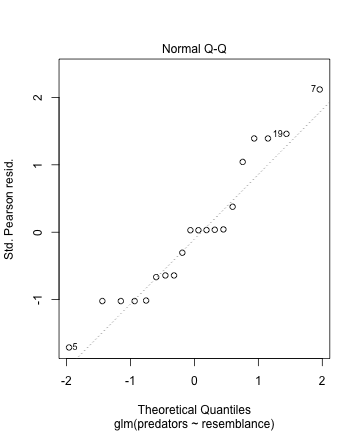

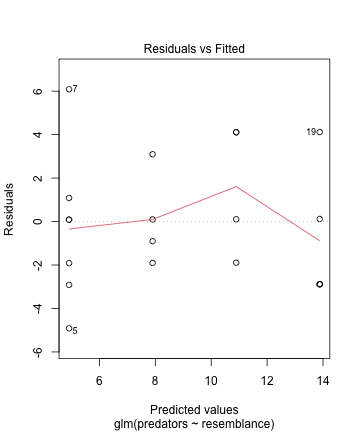

# The *Same* Diagnostics
.pull-left[
<img src="mle_cv_files/figure-html/diag1-1.png" style="display: block; margin: auto;" />
]

.pull-right[
<img src="mle_cv_files/figure-html/diag2-1.png" style="display: block; margin: auto;" />
]

---
# Well Behaved Likelihood Profiles

- To get a profile for a single paramter, we calculate the MLE of all other parameters at different estimates of our parameter of interest

- This *should* produce a nice quadratic curve, as we saw before

- This is how we get our CI and SE (although we usually assume a quadratic distribution for speed)

- BUT - with more complex models, we can get weird valleys, multiple optima, etc.

- Common sign of a poorly fitting model - other diagnostics likely to fail as well

---

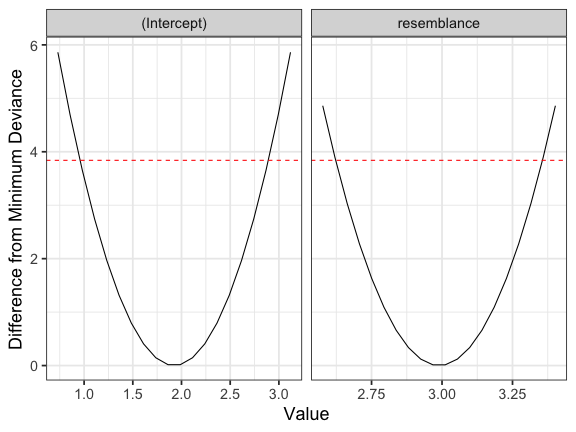

# But - What do the Likelihood Profiles Look Like?
<img src="mle_cv_files/figure-html/profileR-1.png" style="display: block; margin: auto;" />

---

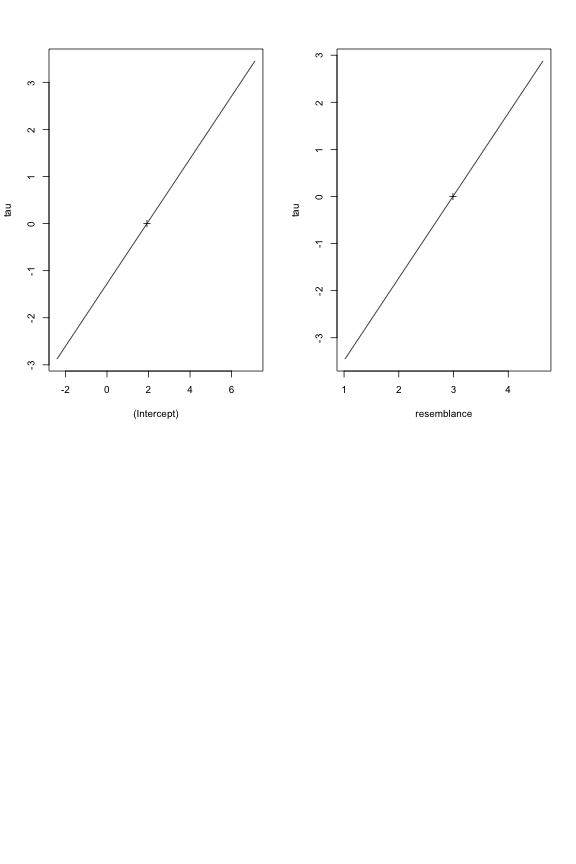

# Are these nice symmetric slices?

### Sometimes Easier to See with a Straight Line
tau = signed sqrt of difference from deviance

---
# Evaluate Coefficients
<table class="table table-striped" style="margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:left;"> term </th>
   <th style="text-align:right;"> estimate </th>
   <th style="text-align:right;"> std.error </th>
   <th style="text-align:right;"> statistic </th>
   <th style="text-align:right;"> p.value </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> (Intercept) </td>
   <td style="text-align:right;"> 1.925 </td>
   <td style="text-align:right;"> 1.506 </td>
   <td style="text-align:right;"> 1.278 </td>
   <td style="text-align:right;"> 0.218 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> resemblance </td>
   <td style="text-align:right;"> 2.989 </td>
   <td style="text-align:right;"> 0.571 </td>
   <td style="text-align:right;"> 5.232 </td>
   <td style="text-align:right;"> 0.000 </td>
  </tr>
</tbody>
</table>

<br>
Test Statistic is a Wald Z-Test Assuming a well behaved quadratic Confidence Interval

---
# A Likely Lecture

1. Introduction to Likelihood

2. Maximum Likelihood Estimation

3. Maximum Likelihood and Linear Regression

4. .red[Comparing Hypotheses with Likelihood]

---

# Applying Different Styles of Inference

.grey[
- **Null Hypothesis Testing**: What's the probability that things are not influencing our data?
      - Deductive
]

- **Model Comparison**: Comparison of alternate hypotheses
      - Deductive or Inductive

.grey[
- **Cross-Validation**: How good are you at predicting new data?
      - Deductive

- **Probabilistic Inference**: What's our degree of belief in a data?
      - Inductive
]

---
# Can Compare p(data | H) for alternate Parameter Values

Compare `$p(D|\theta_{1})$` versus `$p(D|\theta_{2})$`

## Likelihood Ratios
<br>
`$$\LARGE G = \frac{L(H_1 | D)}{L(H_2 | D)}$$`

- G is the ratio of *Maximum Likelihoods* from each model
--

- Used to compare goodness of fit of different models/hypotheses
--

- Most often, `$\theta$` = MLE versus `$\theta$` = 0

- `$-2 log(G)$` is `$\chi^2$` distributed

---
# Likelihood Ratio Test

- A new test statistic: `$D = -2 log(G)$`

- `$= 2 [Log(L(H_2 | D)) - Log(L(H_1 | D))]$`

- It's `$\chi^2$` distributed!
     - DF = Difference in # of Parameters

- If `$H_1$` is the Null Model, we have support for our alternate model

---
# Likelihood Ratio Test for Regression

- We compare our slope + intercept to a model fit with only an intercept!

- Note, models must have the SAME response variable

```r
int_only <- glm(predators ~ 1, data = puffer)
```

- We then use *Analysis of Deviance* (ANODEV)

---
# Our First ANODEV

```
Analysis of Deviance Table

Model 1: predators ~ 1
Model 2: predators ~ resemblance
  Resid. Df Resid. Dev Df Deviance  Pr(>Chi)
1        19     422.95
2        18     167.80  1   255.15 1.679e-07 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
```

---
# When to Use Likelihood?

.pull-left[
- Great for **complex models** (beyond lm)

- Great for anything with an **objective function** you can minimize

- AND, even lm has a likelihood!

- Ideal for **model comparison**

- As we will see, Deviance has many uses...
]

.pull-right[
![](./images/mle/spell_likelihood.jpg)
]
