Multiple Predictor Variables in General Linear Models

https://etherpad.wikimedia.org/p/607-mlr

Data Generating Processes Until Now

One predictor with one response
Except…ANOVA had multiple possible treatment levels

The General Linear Model

$\Large \boldsymbol{Y} = \boldsymbol{\beta X} + \boldsymbol{\epsilon}$

This equation is huge. X can be anything - categorical, continuous, squared, sine, etc.
There can be straight additivity, or interactions
So far, the only model we’ve used with >1 predictor is ANOVA

Models with Many Predictors

ANOVA
ANCOVA
Multiple Linear Regression
MLR with Interactions

Analysis of Covariance

$\Large \boldsymbol{Y} = \boldsymbol{\beta X} + \boldsymbol{\epsilon}$

$Y = \beta_0 + \beta_{1}x + \sum_{j}^{i=1}\beta_j + \epsilon$

Analysis of Covariance

$Y = \beta_0 + \beta_{1}x + \sum_{j}^{i=1}\beta_j + \epsilon$

ANOVA + a continuous predictor
Often used to correct for a gradient or some continuous variable affecting outcome
OR used to correct a regression due to additional groups that may throw off slope estimates
- e.g. Simpson’s Paradox: A positive relationship between test scores and academic performance can be masked by gender differences

Neanderthals and ANCOVA

Who had a bigger brain: Neanderthals or us?

The Means Look the Same…

But there appears to be a Relationship Between Body and Brain Mass

And Mean Body Mass is Different

Analysis of Covariance (control for a covariate)

ANCOVA: Evaluate a categorical effect(s), controlling for a covariate (parallel lines)

Groups modify the intercept.

The Steps of Statistical Modeling

What is your question?
What model of the world matches your question?
Build a test
Evaluate test assumptions
Evaluate test results
Visualize

Assumptions of Multiway Anova

Independence of data points
Normality and homoscedacticity within groups (of residuals)
No relationship between fitted and residual values
Additivity of Treatment and Covariate (Parallel Slopes)

The Usual Suspects of Assumptions

Group Residuals

Test for Parallel Slopes

We test a model where

$Y = \beta_0 + \beta_{1}x + \sum_{j}^{i=1}\beta_j + \sum_{k}^{i=1}\beta_{j}x + \epsilon$

	Sum Sq	Df	F value	Pr(>F)
species	0.0275528	1	6.220266	0.0175024
lnmass	0.1300183	1	29.352684	0.0000045
species:lnmass	0.0048452	1	1.093849	0.3027897
Residuals	0.1550332	35	NA	NA

If you have an interaction, welp, that’s a different model - slopes vary by group!

Ye Olde F-Test

	Sum Sq	Df	F value	Pr(>F)
species	0.0275528	1	6.204092	0.0174947
lnmass	0.1300183	1	29.276363	0.0000043
Residuals	0.1598784	36	NA	NA

What type of Sums of Squares?

II!

Vsualizing Result

Parcelling Out Covariate

Parcelling Out Covariate with PostHocs & Estimated Marginal Menas

contrast	estimate	SE	df	t.ratio	p.value
neanderthal - recent	-0.07	0.028	36	-2.49	0.017

This is the difference between lines

What are the values at, say, mean log mass?

species	emmean	SE	df	lower.CL	upper.CL
neanderthal	7.272	0.024	36	7.223	7.321
recent	7.342	0.013	36	7.317	7.367

How do the slopes differ?

species	lnmass.trend	SE	df	lower.CL	upper.CL
neanderthal	0.496	0.092	36	0.31	0.682
recent	0.496	0.092	36	0.31	0.682

If there had been an interaction…

species	lnmass.trend	SE	df	lower.CL	upper.CL
neanderthal	0.714	0.227	35	0.253	1.174
recent	0.454	0.100	35	0.251	0.657

species	lnmass.trend	SE	df	lower.CL	upper.CL
neanderthal	0.714	0.227	35	0.253	1.174
recent	0.454	0.100	35	0.251	0.657

Differences in groups with an interaction

At lnmass = 3.9

species	emmean	SE	df	lower.CL	upper.CL
neanderthal	7.036	0.094	35	6.846	7.227
recent	7.205	0.029	35	7.146	7.265

At lnmass = 4.4

species	emmean	SE	df	lower.CL	upper.CL
neanderthal	7.393	0.031	35	7.329	7.457
recent	7.432	0.026	35	7.379	7.486

Models with Many Predictors

ANOVA
ANCOVA
Multiple Linear Regression
MLR with Interactions

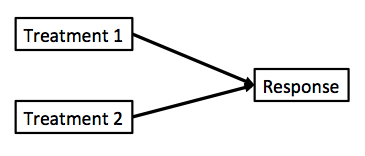

One-Way ANOVA Graphically

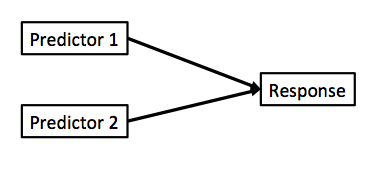

Multiple Linear Regression?

Note no connection between predictors, as in ANOVA. This is ONLY true ifwe have manipulated variables so that there is no relationship between the two. This is not often the case!

Multiple Linear Regression

Curved double-headed arrow indicates COVARIANCE between predictors that we must account for.

MLR controls for the correlation - estimates unique contribution of each predictor.

Calculating Multiple Regression Coefficients with OLS

$\boldsymbol{Y} = \boldsymbol{b X} + \boldsymbol{\epsilon}$

Remember in Simple Linear Regression $b = \frac{cov_{xy}}{var_{x}}$ ?

In Multiple Linear Regression $\boldsymbol{b} = \boldsymbol{cov_{xy}}\boldsymbol{S_{x}^{-1}}$

where $\boldsymbol{cov_{xy}}$ is the covariances of $\boldsymbol{x_i}$ with $\boldsymbol{y}$ and $\boldsymbol{S_{x}^{-1}}$ is the variance/covariance matrix of all Independent variables

Five year study of wildfires & recovery in Southern California shurblands in 1993. 90 plots (20 x 50m)

(data from Jon Keeley et al.)

What causes species richness?

Distance from fire patch
Elevation
Abiotic index
Patch age
Patch heterogeneity
Severity of last fire
Plant cover

Many Things may Influence Species Richness

Our Model

$Richness =\beta_{0} ̃+ \beta_{1} cover +\beta_{2} firesev + \beta_{3}hetero +\epsilon$

klm <- lm(rich ~ cover + firesev + hetero, data=keeley)

Testing Assumptions

Data Generating Process: Linearity
Error Generating Process: Normality & homoscedasticity of residuals
Data: Outliers not influencing residuals
Predictors: Minimal multicollinearity

Checking for Multicollinearity: Correlation Matrices

           cover   firesev    hetero
cover    1.00000 -0.437135 -0.168378
firesev -0.43713  1.000000 -0.052355
hetero  -0.16838 -0.052355  1.000000

Correlations over 0.4 can be problematic, but, they may be OK even as high as 0.8.

Beyond this, are you getting unique information from each variable?

Checking for Multicollinearity: Variance Inflation Factor

Consider $y = \beta_{0} + \beta_{1}x_{1} + \beta_{2}x_{2} + \epsilon$
And $X_{1} = \alpha_{0} + \alpha_{2}x_{2} + \epsilon_j$
$var(\beta_{1}) = \frac{\sigma^2}{(n-1)\sigma^2_{X_1}}\frac{1}{1-R^{2}_1}$

$VIF = \frac{1}{1-R^2_{1}}$

Checking for Multicollinearity: Variance Inflation Factor

$VIF_1 = \frac{1}{1-R^2_{1}}$

  cover firesev  hetero
 1.2949  1.2617  1.0504

VIF $>$ 5 or 10 can be problematic and indicate an unstable solution.

Solution: evaluate correlation and drop a predictor

Other Diagnostics as Usual!

Examine Residuals With Respect to Each Predictor

Which Variables Explained Variation: Type II Marginal SS

	Sum Sq	Df	F value	Pr(>F)
cover	1674.18	1	12.01	0.00
firesev	635.65	1	4.56	0.04
hetero	4864.52	1	34.91	0.00
Residuals	11984.57	86	NA	NA

If order of entry matters, can use type I. Remember, what models are you comparing?

What’s Going On: Type I and II Sums of Squares

	Type I	Type II
Test for A	A v. 1	A + B v. B
Test for B	A + B v. A	A + B v. A

Type II more conservative for A

The coefficients

	Estimate	Std. Error	t value	Pr(>\|t\|)
(Intercept)	1.68	10.67	0.16	0.88
cover	15.56	4.49	3.47	0.00
firesev	-1.82	0.85	-2.14	0.04
hetero	65.99	11.17	5.91	0.00

R² = 0.40986

Comparing Coefficients on the Same Scale

$r_{xy} = b_{xy}\frac{sd_{x}}{sd_{y}}$

   cover  firesev   hetero
 0.32673 -0.19872  0.50160

Visualization of 4-D Multivariate Models is Difficult!

Component-Residual Plots Aid in Visualization

Takes effect of predictor + residual of response

Added Variable Plot to Show Unique Contributions when Holding Others Constant

Or Show Regression at Median of Other Variables

Or Show Predictions Overlaid on Data

Models with Many Predictors

ANOVA
ANCOVA
Multiple Linear Regression
MLR with Interactions

Problem: What if Continuous Predictors are Not Additive?

Model For Age Interacting with Elevation to Influence Fire Severity

$y = \beta_0 + \beta_{1}x_{1} + \beta_{2}x_{2}+ \beta_{3}x_{1}x_{2}$

keeley_lm_int <- lm(firesev ~ age*elev, data=keeley)

Testing Assumptions

Data Generating Process: Linearity
Error Generating Process: Normality & homoscedasticity of residuals
Data: Outliers not influencing residuals
Predictors: Minimal collinearity

Other Diagnostics as Usual!

Examine Residuals With Respect to Each Predictor

Interactions, VIF, and Centering

     age     elev age:elev
  3.2001   5.5175   8.2871

This isn’t that bad. But it can be.

Often, interactions or nonlinear derived predictors are collinear with one or more of their predictors.

To remove, this, we center predictors - i.e., $X_i - mean(X)$

Interpretation of Centered Coefficients

$\huge X_i - \bar{X}$

Additive coefficients are the effect of a predictor at the mean value of the other predictors
Intercepts are at the mean value of all predictors
Visualization will keep you from getting confused!

Interactions, VIF, and Centering

$y = \beta_0 + \beta_{1}(x_{1}-\bar{x_{1}}) + \beta_{2}(x_{2}-\bar{x_{2}})+ \beta_{3}(x_{1}-\bar{x_{1}})(x_{2}-\bar{x_{2}})$

Variance Inflation Factors for Centered Model:

       age_c       elev_c age_c:elev_c
      1.0167       1.0418       1.0379

F-Tests to Evaluate Model

What type of Sums of Squares??

	Sum Sq	Df	F value	Pr(>F)
age	52.9632	1	27.7092	0.00000
elev	6.2531	1	3.2715	0.07399
age:elev	22.3045	1	11.6693	0.00097
Residuals	164.3797	86	NA	NA

Coefficients!

	Estimate	Std. Error	t value	Pr(>\|t\|)
(Intercept)	1.81322	0.61561	2.9454	0.00415
age	0.12063	0.02086	5.7823	0.00000
elev	0.00309	0.00133	2.3146	0.02302
age:elev	-0.00015	0.00004	-3.4160	0.00097

R² = 0.32352

Note that additive coefficients signify the effect of one predictor in the abscence of all others.

Centered Coefficients!

	Estimate	Std. Error	t value	Pr(>\|t\|)
(Intercept)	4.60913	0.14630	31.5040	0.00000
age_c	0.05811	0.01176	4.9419	0.00000
elev_c	-0.00068	0.00058	-1.1716	0.24460
age_c:elev_c	-0.00015	0.00004	-3.4160	0.00097

R² = 0.32352

Note that additive coefficients signify the effect of one predictor at the average level of all others.

Interpretation

What the heck does an interaction effect mean?
We can look at the effect of one variable at different levels of the other
We can look at a surface
We can construct counterfactual plots showing how changing both variables influences our outcome

Age at Different Levels of Elevation

Elevation at Different Levels of Age

Surfaces and Other 3d Objects

Or all in one plot

Without Data and Including CIs

A Heatmap Approach

We can do a lot with the general linear model!
You are only limited by the biological models you can imagine.
