Correlation and The Linear Model



https://xkcd.com/552/

Etherpad



https://etherpad.wikimedia.org/p/607-lm

Review

  • Testing Hypotheses with P-Values

  • Z, T, and \(\chi^2\) tests for hypothesis testing

  • Power of different statistical tests using simulation

Today

  1. Correlation

  2. Mechanics of Simple Linear Regression

  3. Testing Asssumptions of SLR

The Steps of Statistical Modeling

  1. What is your question?
  2. What model of the world matches your question?
  3. Build a test
  4. Evaluate test assumptions
  5. Evaluate test results
  6. Visualize

Correlation Can be Induced by Many Mechanisms

image     image image

Example: Wolf Inbreeding and Litter Size

Example: Wolf Inbreeding and Litter Size

We don’t know which is correct - or if another model is better. We can only examine correlation.

What is Correlation?

  • The porportion change in standard deviations of variable x per change in 1 SD of variable y
    • Clear, right?
    • And that’s just for normal, linear variables

  • Assesses the degree of association between two variables

  • But, unitless (sort of)
    • Between -1 and 1

Calculating Correlation: Start with Covariance

Describes the relationship between two variables. Not scaled.

\(\sigma_{xy}\) = population level covariance
\(s_{xy}\) = covariance in your sample




\[\sigma_{XY} = \frac{\sum (X-\bar{X})(y-\bar{Y})}{n-1}\]

Pearson Correlation

Describes the relationship between two variables.
Scaled between -1 and 1.

\(\rho_{xy}\) = population level correlation, \(r_{xy}\) = correlation in your sample




\[\Large\rho_{xy} = \frac{\sigma_{xy}}{\sigma_{x}\sigma_{y}}\]

Assumptions of Pearson Correlation


  • Observations are from a random sample


  • Each observation is independent


  • X and Y are from a Normal Distribution

The meaning of r

Y is perfectly predicted by X if r = -1 or 1.
\(r^2\) = the porportion of variation in y explained by x

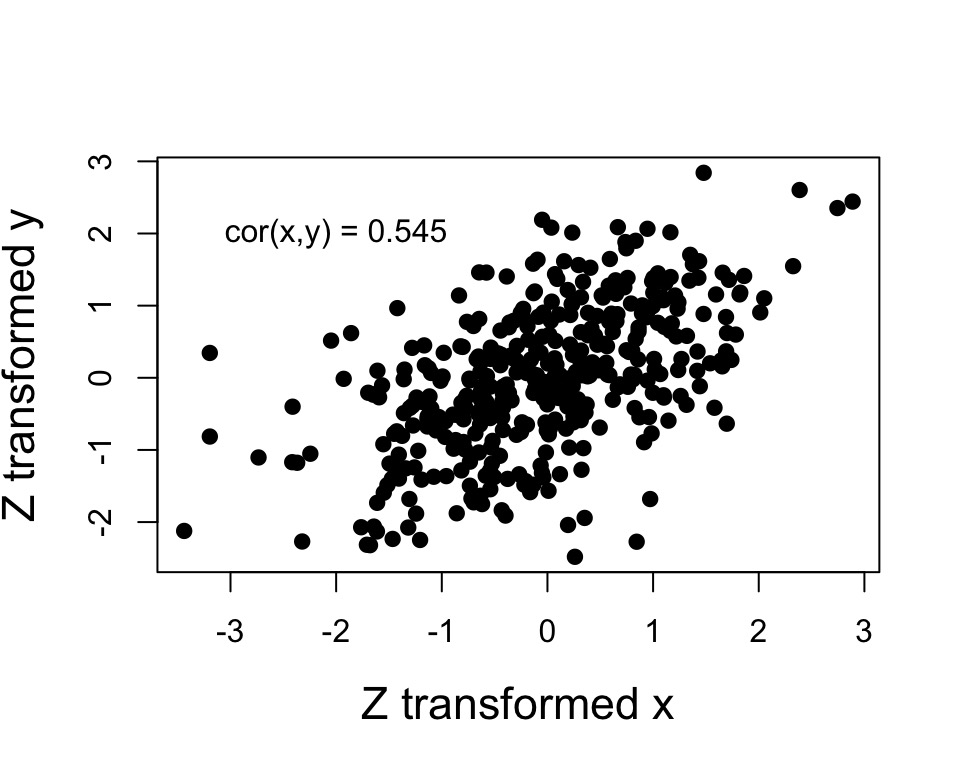

Get r in your bones…




http://guessthecorrelation.com/

Testing if r \(\ne\) 0

Ho is r=0. Ha is r \(\ne\) 0.


Testing: \(t= \frac{r}{SE_{r}}\) with df=n-2


WHY n-2?
\(\sigma_{xy}\) Because you use two parameters: \(\bar{X}\) and \(\bar{Y}\)


\[SE_{r} = \sqrt{\frac{1-r^2}{n-2}}\]

Example: Wolf Inbreeding and Litter Size

Example: Wolf Inbreeding and Litter Size

                       inbreeding.coefficient  pups
inbreeding.coefficient                   0.01 -0.11
pups                                    -0.11  3.52


                       inbreeding.coefficient  pups
inbreeding.coefficient                   1.00 -0.61
pups                                    -0.61  1.00


estimate statistic p.value parameter
-0.608 -3.589 0.002 22
</div >

Violating Assumptions?

  • Spearman’s Correlation (rank based)

  • Distance Based Correlation & Covariance (dcor)

  • Maximum Information Coefficient (nonparametric)

  • All are lower in power for linear correlations

Spearman Correlation

  1. Transform variables to ranks, i.e.,2,3… (rank())

  2. Compute correlation using ranks as data

  3. If n \(\le\) 100, use Spearman Rank Correlation table

  4. If n \(>\) 100, use t-test as in Pearson correlation

Distance Based Correlation, MIC, etc.


Today

  1. Correlation

  2. Mechanics of Simple Linear Regression

  3. Testing Asssumptions of SLR

Least Squares Regression


\(\Large \widehat{y} = \beta_0 + \beta_1 x + \epsilon\)



Then it’s code in the data, give the keyboard a punch
Then cross-correlate and break for some lunch
Correlate, tabulate, process and screen
Program, printout, regress to the mean

-White Coller Holler by Nigel Russell

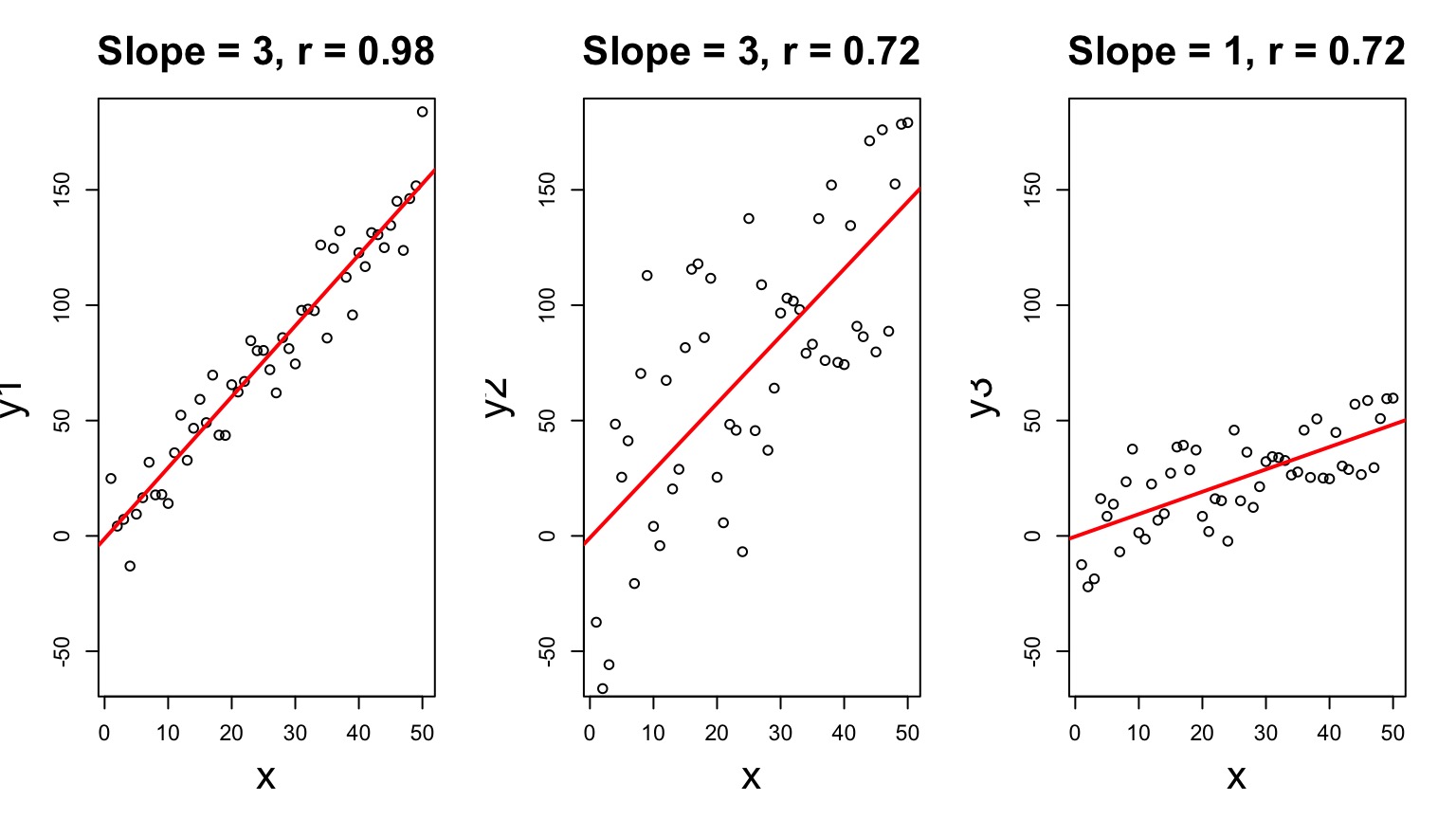

Correlation v. Regression Coefficients

Basic Princples of Linear Regression


  • Y is determined by X: p(Y \(|\) X=x)

  • The relationship between X and Y is Linear

  • The residuals of \(\widehat{Y} = \beta_0 + \beta_1 X + \epsilon\) are normally distributed
    (i.e., \(\epsilon \sim\) N(0,\(\sigma\)))

Basic Principles of Least Squares Regression

\(\widehat{Y} = \beta_0 + \beta_1 X + \epsilon\) where \(\beta_0\) = intercept, \(\beta_1\) = slope

Minimize Residuals defined as \(SS_{residuals} = \sum(Y_{i} - \widehat{Y})^2\)

Lots of Possible Lines: Least Squares

Solving for Slope



\(\LARGE b=\frac{s_{xy}}{s_{x}^2}\) \(= \frac{cov(x,y)}{var(x)}\)


\(\LARGE = r_{xy}\frac{s_{y}}{s_{x}}\)

Solving for Intercept



Least squares regression line always goes through the mean of X and Y
\(\Large \bar{Y} = \beta_0 + \beta_1 \bar{X}\)



\(\Large \beta_0 = \bar{Y} - \beta_1 \bar{X}\)

Putting Linear Regression Into Practice with Pufferfish

  • Pufferfish are toxic/harmful to predators

  • Batesian mimics gain protection from predation - why?

  • Evolved response to appearance?

  • Researchers tested with mimics varying in toxic pufferfish resemblance

The Steps of Statistical Modeling

  1. What is your question?
  2. What model of the world matches your question?
  3. Build a test
  4. Evaluate test assumptions
  5. Evaluate test results
  6. Visualize

Question: Does Resembling a Pufferfish Reduce Predator Visits?

A Preview: But How do we Get Here?

The World of Pufferfish

Data Generating Process:

\[Visits \sim Resemblance\]
Assume: Linearity (reasonable first approximation)


Error Generating Process:

Variation in Predator Behavior

Quantiative Model of Process

\[\Large Visits_i = \beta_0 + \beta_1 Resemblance_i + \epsilon_i\]

\[\Large \epsilon_i ~ N(0, \sigma)\]

Today

  1. Correlation

  2. Mechanics of Simple Linear Regression

  3. Testing Asssumptions of SLR

What questions will we test?

  • Does resemblance explain variation in predator behavior?

  • Is the slope of the relationship positive or negative?

  • All questions will be tested using a fit linear model with T and F tests

Testing Assumptions

  • Data Generating Process: Linearity
    • Examine relationship between fitted and observed values
    • Secondary evaluation: fitted v. residual values

  • Error Generating Process: Normality & homoscedasticity of residuals
    • Histogram of residuals
    • QQ plot of residuals
    • Levene test if needed

  • Data
    • Do we have any outliers with excessive leverage?

Linearity of the Puffer Relationship

Fitted v. Observed

Points fall on 1:1 line, no systematic deviations

Linearity and Homoscedasticity of the Puffer Relationship

Fitted v. Residual

No systematic trends in relationship required!

Normality of Residuals

Appears peaked in the middle…

Normality of Residuals

QQ Plot!

Any Excessive Outliers?

Cook’s Distance

Nothing with > 1

Anything Too Influential

Leverage: How Far is an Observation from the Others

Should be a cloud with no trend
